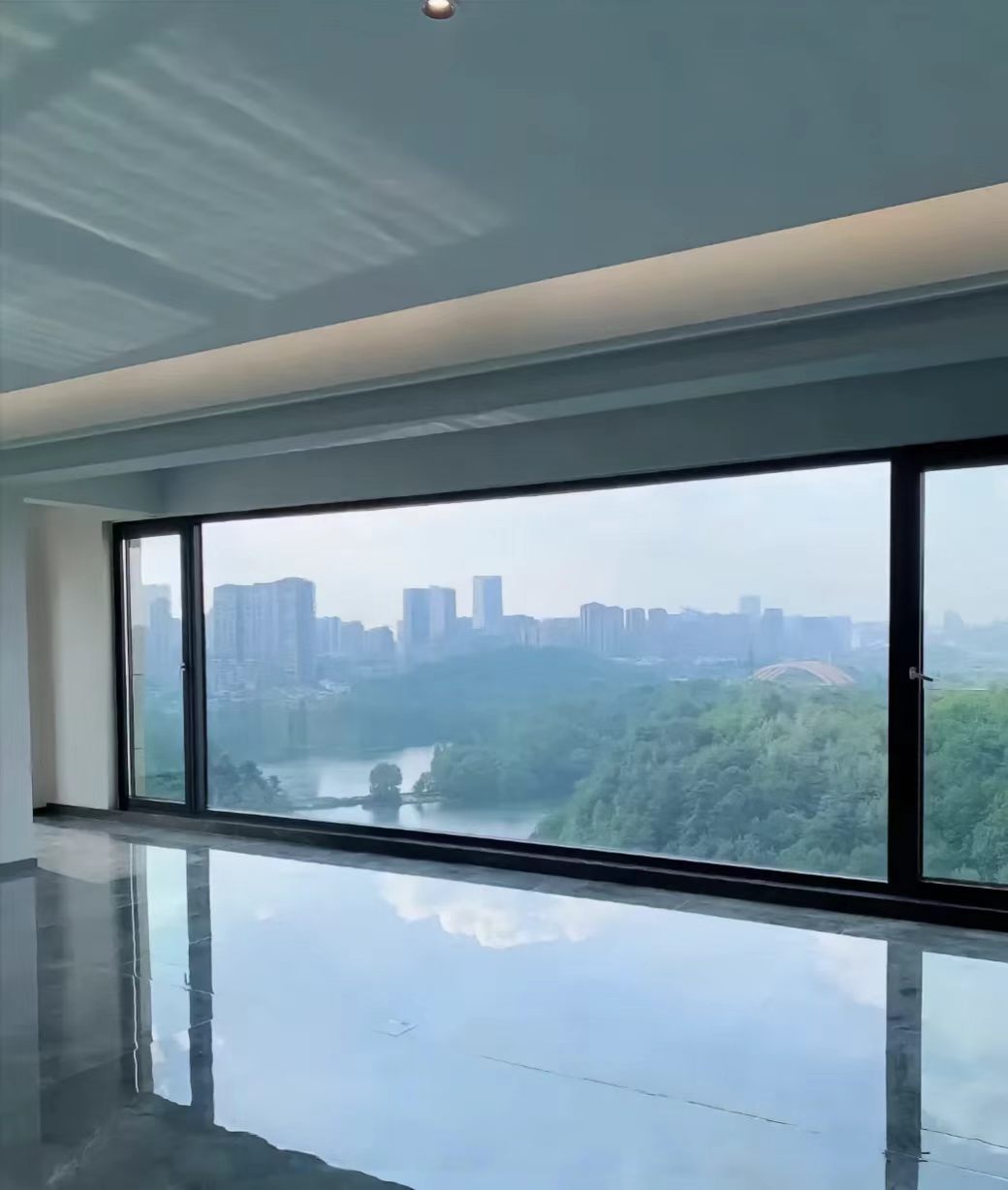

What defines the signature feature of a luxury penthouse? It is undoubtedly the panoramic floor-to-ceiling window that runs from floor to ceiling, free of any vertical mullions blocking the view.
Many homeowners encounter a common dilemma during material selection: they wish to install a single pane of glass for their 4-meter-wide living room, yet 99% of door and window manufacturers on the market can only produce glass panels narrower than 2.4 meters. Most fabricators are simply incapable of manufacturing monolithic 4-meter-wide tempered glass, not unwilling to do so.
This is where Xunyuan Glass stands out with its unique technical strengths.
1. Why 4 Meters Marks a Critical Technical Threshold
The production workflow of tempered glass includes: raw glass cutting → edge grinding → heating to the softening point (approximately 700°C) → rapid quenching → finished product. As glass dimensions increase, the difficulty of each production stage rises exponentially.
| Processing Stage | Standard Panels (≤ 2.4m) | 4m Ultra-Wide Panels | Challenges |
|---|
| Raw Glass Supply | Standard raw glass sheets are sufficient | Custom ultra-wide low-iron raw glass is required | Raw material cost doubles |
| Tempering Furnace | Conventional tempering furnaces apply | Special 4m wide-format tempering furnaces are mandatory | Extremely high capital investment for equipment |
| Heating Uniformity | A temperature deviation of ±3°C is acceptable | Temperature deviation must be controlled within ±1°C | Excessive temperature difference leads to glass deformation and uneven stress distribution |
| Cooling Uniformity | Standard air cooling works well | Precise zoned cooling system is required | Uneven cooling causes glass warping or spontaneous breakage |
| Handling & Turning | Manpower plus suction cups for operation | Special lifting equipment and a dedicated crew are needed | Risk of breakage rises sharply |
| Transportation | Standard cargo trucks | Special transportation solutions for oversize cargo | Significant increase in logistics costs |
Key Conclusion: Manufacturers producing standard 2.4m glass and those capable of 4m glass operate with entirely different equipment and craftsmanship. This is not a minor upgrade, but a generational leap in glass processing technology.
2. Selection Guidelines for Frameless Floor-to-Ceiling Windows
If you plan to install frameless floor-to-ceiling windows for a 4-meter-wide living room, please refer to the following key specifications:
| Parameter | Recommended Solution | Reason |
|---|
| Glass Thickness | 12mm or 15mm single-pane tempered glass | Glass panels with an area over 4㎡ endure strong wind loads; thinner glass will vibrate noticeably |
| Glass Type | Low-iron ultra-clear tempered glass | Standard glass carries a noticeable green tint, which is highly visible on large 4m-wide panes |
| Tempering Process | Physical tempering plus Heat Soak Test (HST) | Reduces the risk of spontaneous breakage to 0.1% |
| Interlayer (for laminated glass) | SGP ionic interlayer film | PVB interlayers are prone to creep on ultra-wide glass panels |
| Maximum Single Pane Size | 4000×6500mm (Available at Xunyuan Glass) | Monolithic design with no joints and unobstructed views |
| Edge Finishing | Fine grinding & chamfering | Exposed edges on frameless windows require superior finishing for safety and aesthetics |
| Installation Method | Top & bottom groove fixation with structural adhesive reinforcement | Frameless glass has no vertical mullion support; load-bearing relies entirely on top and bottom fixtures |
Why Choose Ultra-Clear Glass?
A single pane measuring 4m × 2.8m made of standard float glass will show a distinct green hue caused by iron content. This tint is negligible on small panes but becomes highly prominent on large curtain walls, distorting the outdoor scenery.
Low-iron ultra-clear glass features an iron content of ≤0.015% (compared to approximately 0.1% for standard glass) and a visible light transmittance of ≥91%. It faithfully presents the true colors of the outdoor environment.
3. Application Scenarios for 4m Ultra-Wide Tempered Glass
| Application Scenario | Glass Specification | Xunyuan Glass Capability |
|---|
| Frameless Windows (Living & Dining Areas of Luxury Penthouses) | 12mm Ultra-Clear Tempered Glass, 4000×2800mm | Fully covered by our 4000×6500mm production capacity |
| Atrium Daylighting Windows (Villas) | 15mm Ultra-Clear Tempered Low-E Glass, 4000×3500mm | Capable of producing ultra-thick & ultra-wide glass for complete turnkey delivery |
| Curtain Wall Windows (High-Rise Luxury Penthouses) | 12+2.28SGP+12 Ultra-Clear Laminated Glass, 4000×3200mm | Integrated ultra-wide laminated glass, no on-site splicing required |
| Panoramic Windows (Sales Galleries & Exhibition Halls) | 15mm Ultra-Clear Tempered Glass, 4000×4500mm | Oversized ultra-clear glass for maximum transparency |
| Executive Offices (Commercial Buildings) | 12mm Ultra-Clear Tempered Glass, 4000×3000mm | Unobstructed views and premium aesthetics |
4. Core Differences: Framed vs. Frameless Floor-to-Ceiling Windows
| Comparison Item | Framed Floor-to-Ceiling Windows | Frameless Floor-to-Ceiling Windows |
|---|
| Visual Effect | Views are divided by vertical mullions (installed every 1.2–1.5 meters) | One single glass pane with zero visual obstruction |
| Glass Specifications | Individual panes ≤ 1.5㎡, standard sizes | Individual panes up to 12–16㎡, requiring professional ultra-wide tempering |
| Manufacturer Requirements | Produced by general tempering factories | Only available from a handful of 4m wide-format tempering specialists |
| Overall Cost | Lower glass cost, higher cost for metal frames | Higher glass cost, but substantial savings on frame materials |
| Spatial Perception | Space segmented by frames & columns | Seamless integration between indoor and outdoor spaces |
| Installation | Split installation with standard procedures | Full-pane hoisting, requiring professional construction teams |
5. Frequently Asked Questions (FAQ)
Q1: What glass thickness is safe for a 4m-wide floor-to-ceiling window?A: We recommend a minimum thickness of 12mm for single-pane tempered glass. For high-rise buildings or coastal areas with strong wind loads, 15mm glass is preferred. Where building codes require laminated glass for curtain walls, we suggest 12+2.28SGP+12 ultra-clear laminated glass (total thickness: 26.28mm) for enhanced safety. The exact thickness shall be calculated based on local wind load, installation height and glass area. Please send us your drawings for professional evaluation.
Q2: Can a 4m-wide glass pane fit into a residential elevator? How is installation carried out?A: Oversized 4m glass cannot fit into standard elevators. Our standard workflow is: factory delivery via oversize transport → on-site unloading → hoisting to the designated floor → horizontal placement through window openings → final installation. The hoisting route and installation plan must be confirmed in advance. We advise coordination between the glass supplier and construction team at the early renovation stage.
Q3: Do frameless floor-to-ceiling windows cause air or water leakage?A: Air and water tightness of frameless windows depend on the sealing structure of the top and bottom grooves, rather than the glass itself. With well-designed grooves, high-quality sealing strips and professional installation, frameless windows deliver the same waterproof and airtight performance as framed windows. Construction quality is the key factor.
Q4: Is there a noticeable difference between ultra-clear glass and standard glass?A: The difference is significant. The green tint of standard glass is greatly amplified on large 4m panes, especially in bright sunlight. Ultra-clear glass maintains a neutral transparent appearance from all angles and ensures true color reproduction for outdoor views. A premium luxury penthouse deserves unobstructed, undistorted scenery without green tint interference.
Q5: What if the 4m monolithic glass breaks? Does the entire pane need replacement?A: Yes, full replacement is required. Tempered glass shatters into small granular pieces, while laminated glass holds broken fragments together via the interlayer to prevent falling hazards. Choosing SGP laminated glass greatly reduces safety risks. The full replacement process including measurement, production, transportation and hoisting takes approximately 7–10 working days. We recommend laminated glass whenever your budget allows.
Q6: Does Xunyuan Glass provide installation services?A: We specialize in glass deep processing and nationwide logistics. On-site installation is completed by local professional curtain wall and window contractors. Our team provides technical guidance and detailed construction drawings to ensure proper hoisting and installation of oversized glass.
6. Pre-Order Inspection Checklist
Please confirm the following details with your glass supplier before placing an order:
Brand and origin of raw glass sheets (Top-tier brands such as Xinyi Glass and CSG are recommended for ultra-clear glass)
Performance of Heat Soak Test (HST) to minimize spontaneous breakage
Edge finishing (Fine grinding & chamfering is mandatory for frameless window glass)
Custom transportation plan (Oversize vehicles, wooden crate packaging and dedicated escort)
Delivery lead time (Standard lead time for oversized glass at Xunyuan Glass: 2–5 working days)
Henan Xunyuan Glass Co., Ltd.
We specialize in high-end architectural glass deep processing, including:4m ultra-wide tempered glass, 6.5m ultra-long tempered glass, R300mm pure bent tempered glass, R350mm straight-bent composite tempered glass, SGP laminated glass and oversized ultra-clear glass.We offer full custom solutions and deliver monolithic glass with no on-site splicing.
📞 Tel: +86 15238095826🌐 Website: xunyuanglass.com
Send us your design drawings, and we will assess whether your glass can be manufactured as a single monolithic pane.
