Large-radius curved tempered glass — covering the full range of large bending radii, with R = 80 m commonly used as a representative reference — looks almost flat to the eye, yet every panel must land precisely on the same curve so that a flowing facade reads as one continuous surface. Xunyuan Glass (Henan Xunyuan Glass Co., Ltd.) processes large-radius curved tempered glass with thicknesses from 5 to 19 mm, arc lengths up to 8 m and panel heights up to 6 m, all completed on in-house tempering, laminating and insulating lines. One-panel minimum order; standard lead time 7–10 days. Feasibility for any given radius is confirmed per drawing.
Why large radii are the harder job

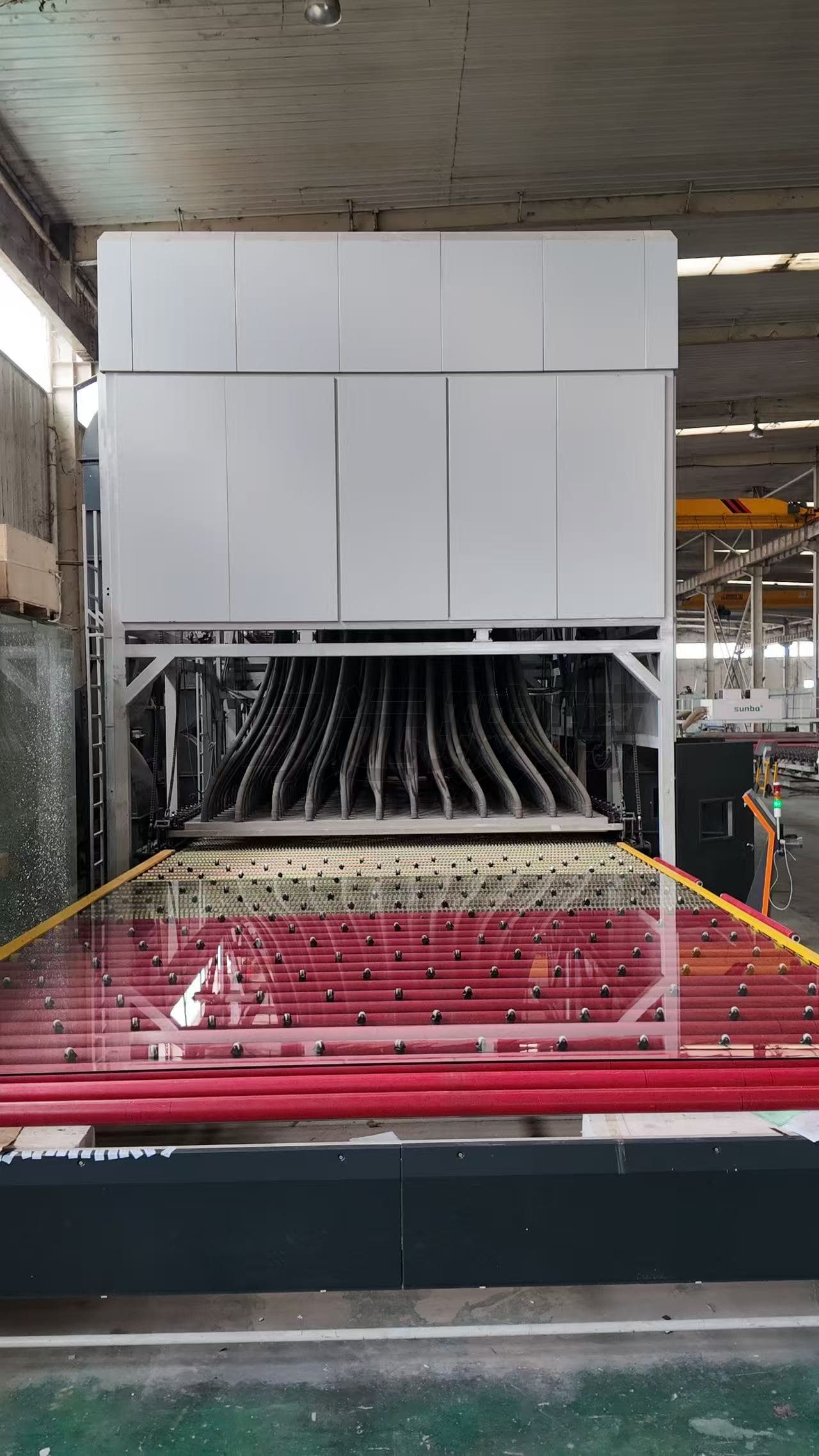

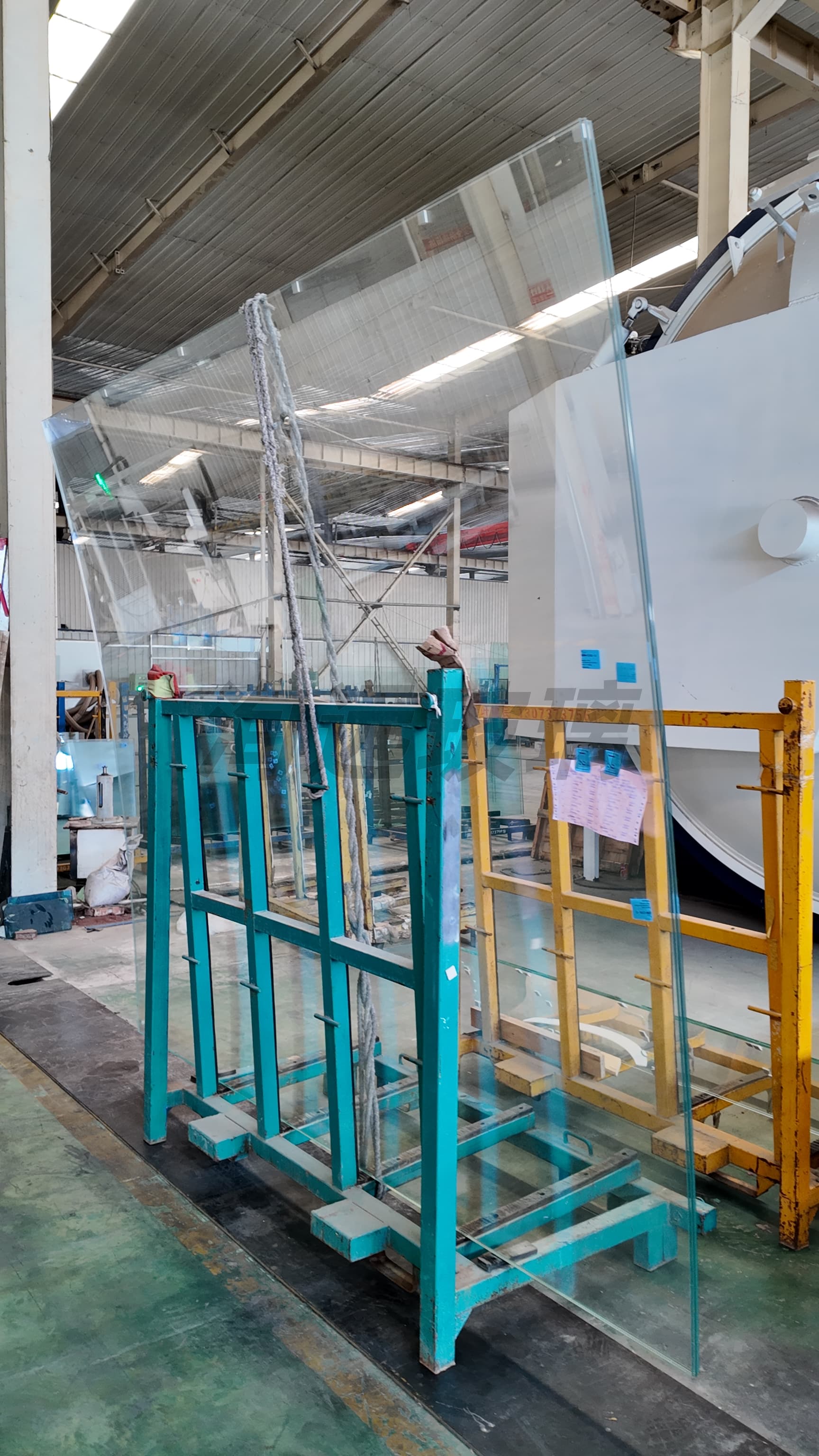

Small-radius curved glass is difficult to form; large-radius glass is difficult to keep true. Using R = 80 m as a representative reference, a 3 m chord rises only about 14 mm at the center — invisible on the shop floor. Curve accuracy therefore depends entirely on furnace technology and process discipline. Our dual-chamber forced-convection tempering furnaces heat large panels uniformly, while stress balance and flatness are tuned through repeated parameter trials. Diagonal tolerance, flatness and bow are all controlled within national standards.
Combined processing in one plant
Curved + insulated units for energy-efficient facades; curved + laminated (PVB/SGP) for skylights and overhead glazing; curved + Low-E coatings and curved + ceramic frit for decorated envelopes. Low-iron ultra-clear substrates from leading float glass brands are available. During laminating and insulating, panels are set on curve-matched supports to prevent distortion in secondary processing.
Engineering and delivery services
CAD deepening within 24 hours from your drawings or templates, free of charge; support for spec selection, load calculation and detail nodes.
Packaging: wooden crates / steel racks, vacuum packing, moisture-proof solutions.

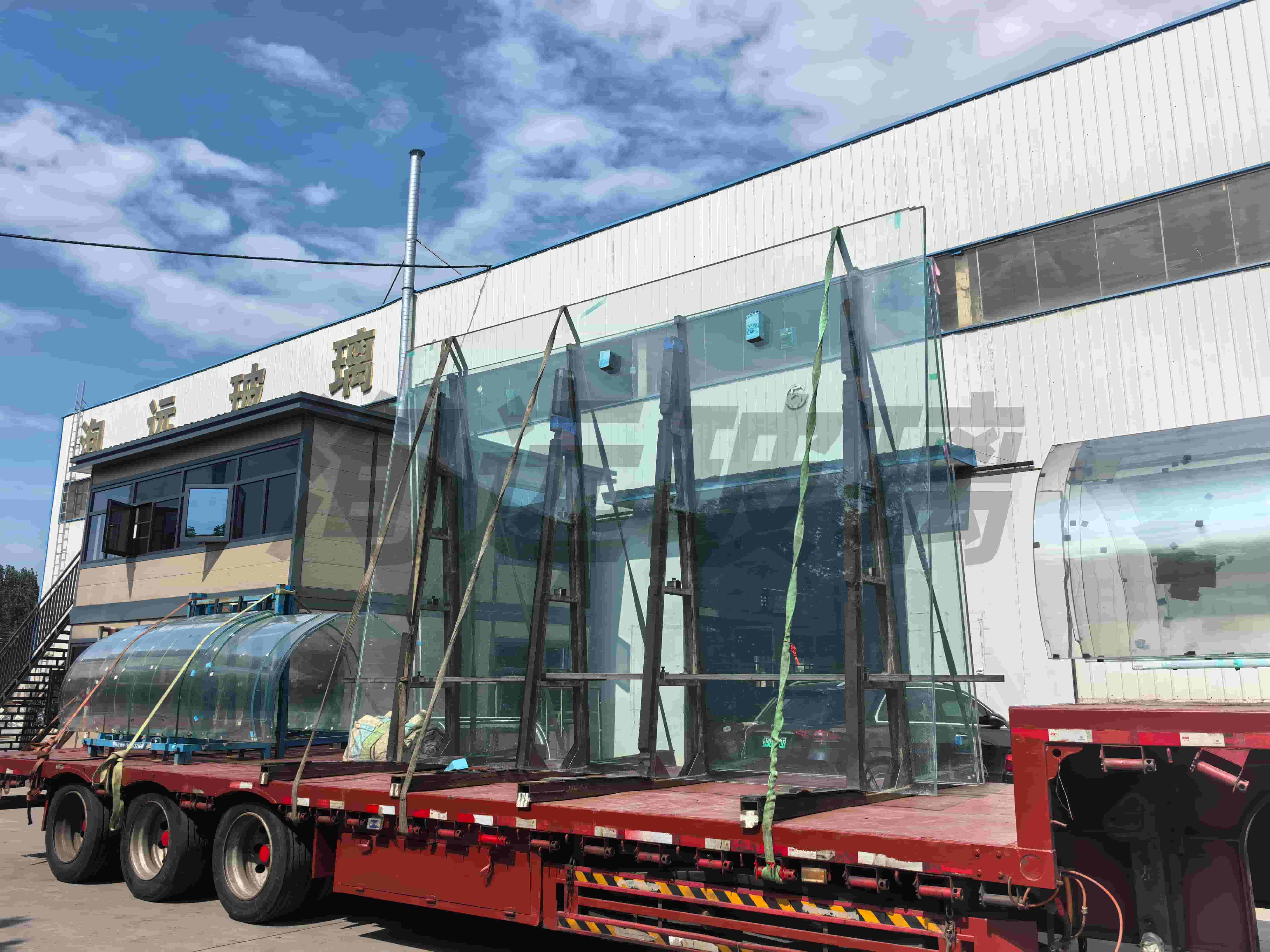

Oversized-panel transport plans with rigging guidance; delivery within China and overseas. Recent overseas references include an airport curtain wall in Malaysia, a landmark building in the Middle East, and a headquarters project in the United States.
Request a quotation
Send us the radius, chord length, panel height, thickness and build-up (monolithic / laminated / insulated / Low-E), or simply submit your CAD drawings. Our engineering team will confirm feasibility and return a process evaluation within 24 hours.
