Custom shaped bent glass is not about whether the glass can curve — it is about whether the designed form can be produced in one pass, and whether the curve stays consistent across the whole batch. Xunyuang Glass works from its own production line with integrated processing: minimum radius 350mm for shaped bends, 300mm for standard bends, maximum arc length 8m, maximum panel size 6m×8m, covering 5–19mm thickness for flat tempering, bent tempering, heat bending and shaped bending.
1. Closing the gap between design intent and fabrication limits
Action 1: Feasibility check at the detailing stage. We read the drawing against the curvature change rate, derive forming and tempering parameters, and flag high-risk zones — sharp curvature transitions and small-radius corners — before production starts. This happens at the detailing stage. What you gain: you learn early whether the face can be made, and you avoid a second design round.
Action 2: Boundary parameters stated up front. Minimum radius 350mm for shaped bends and 300mm for standard bends. Maximum arc length 8m. Maximum panel size 6m×8m. This happens at the quoting and technical review stage. What you gain: you can judge whether the form needs segmentation before committing.

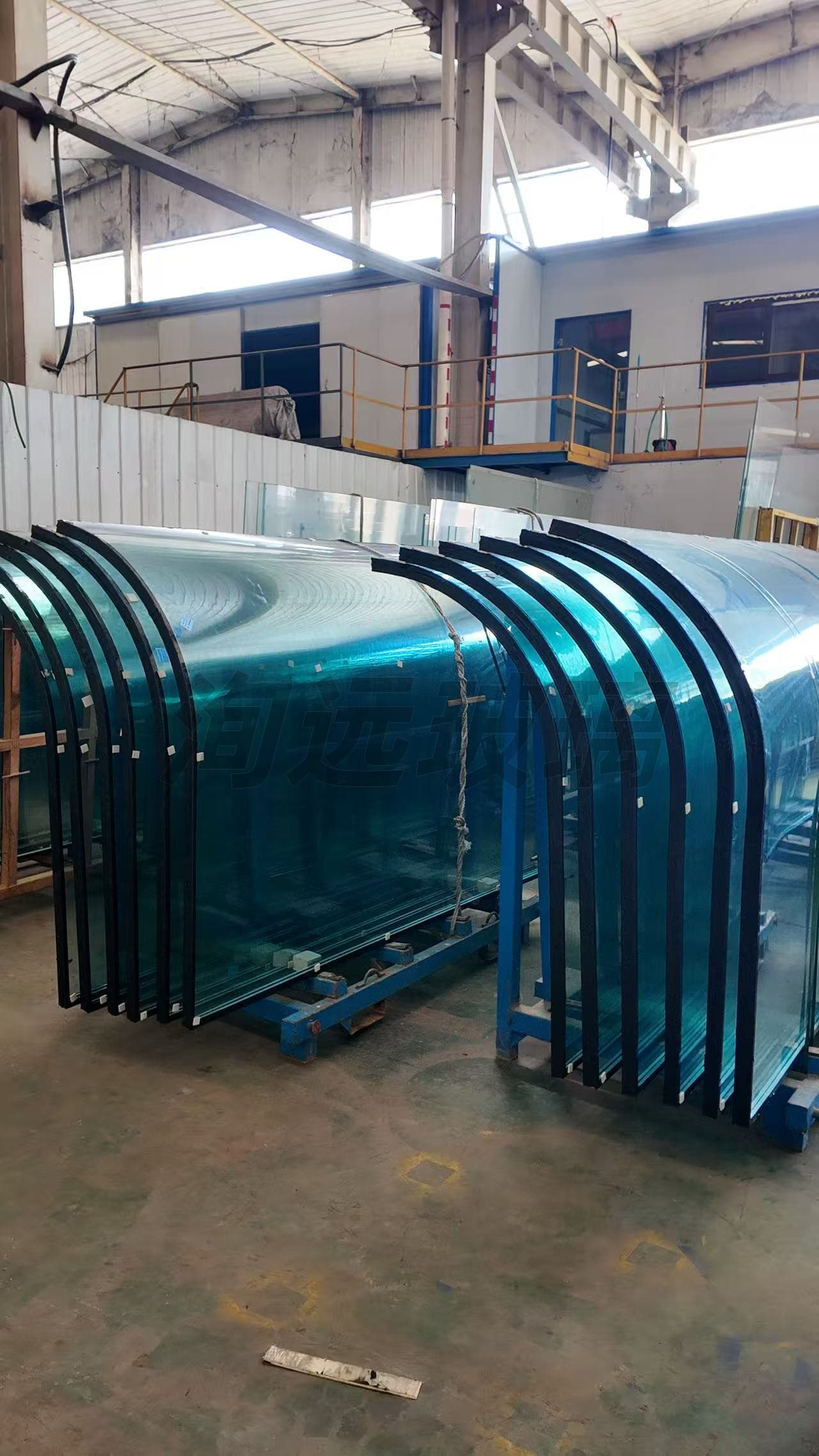

2. Keeping one batch consistent — and avoiding joint mismatch on site

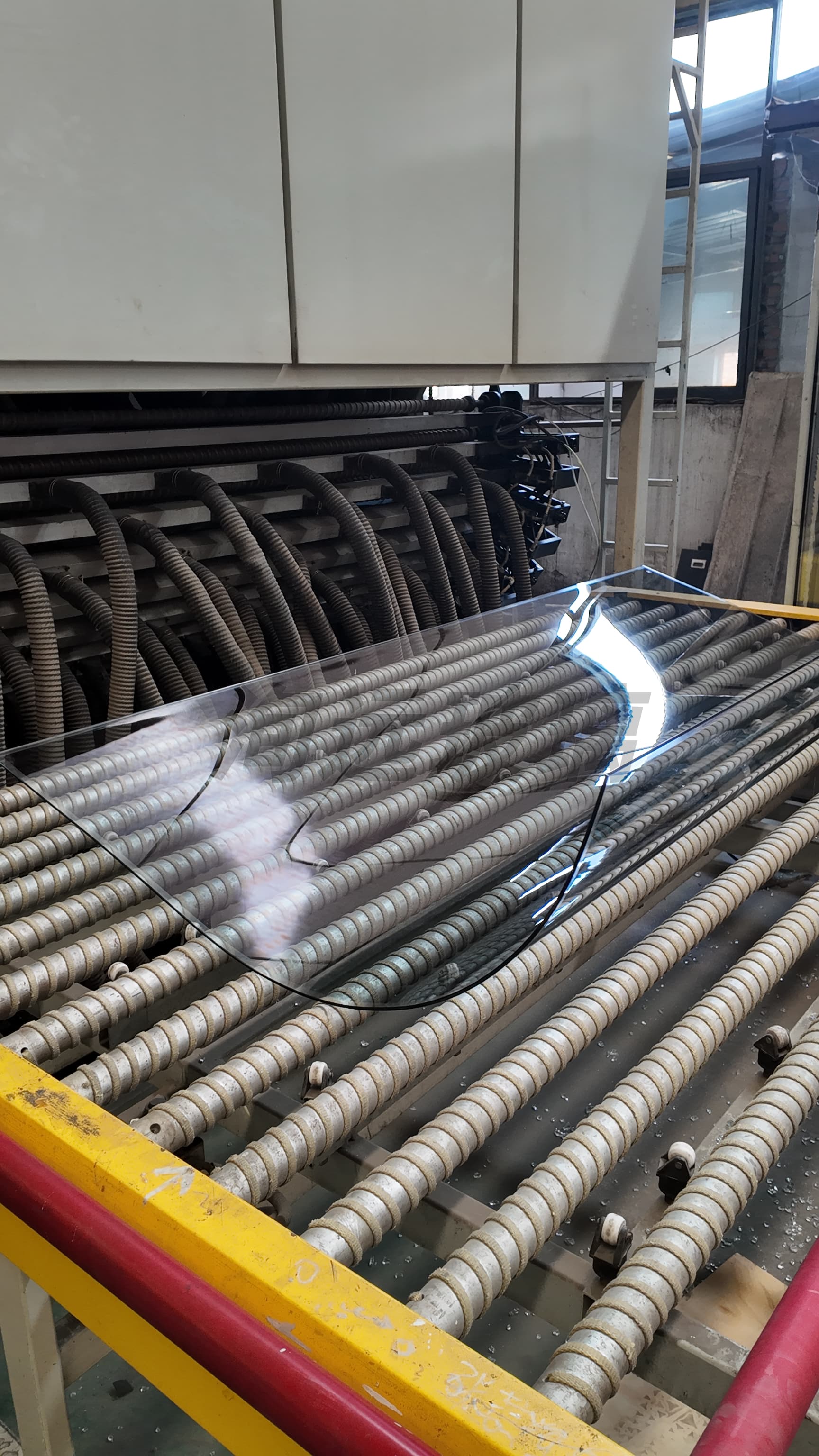

When units from one batch differ in curvature, some fit the frame and some leave a gap, and the site crew starts forcing them in. Action 3: Forming check and spring-back compensation. We predict forming temperature and spring-back from the drawing, and build the compensation into the forming stage rather than correcting after tempering. Action 4: First-piece check and in-process sampling. Batch production starts only after the first piece passes, with parameter drift monitored throughout. What you gain: less site rework and no second delay caused by rework.
3. Delivery: drawings, packaging, lifting

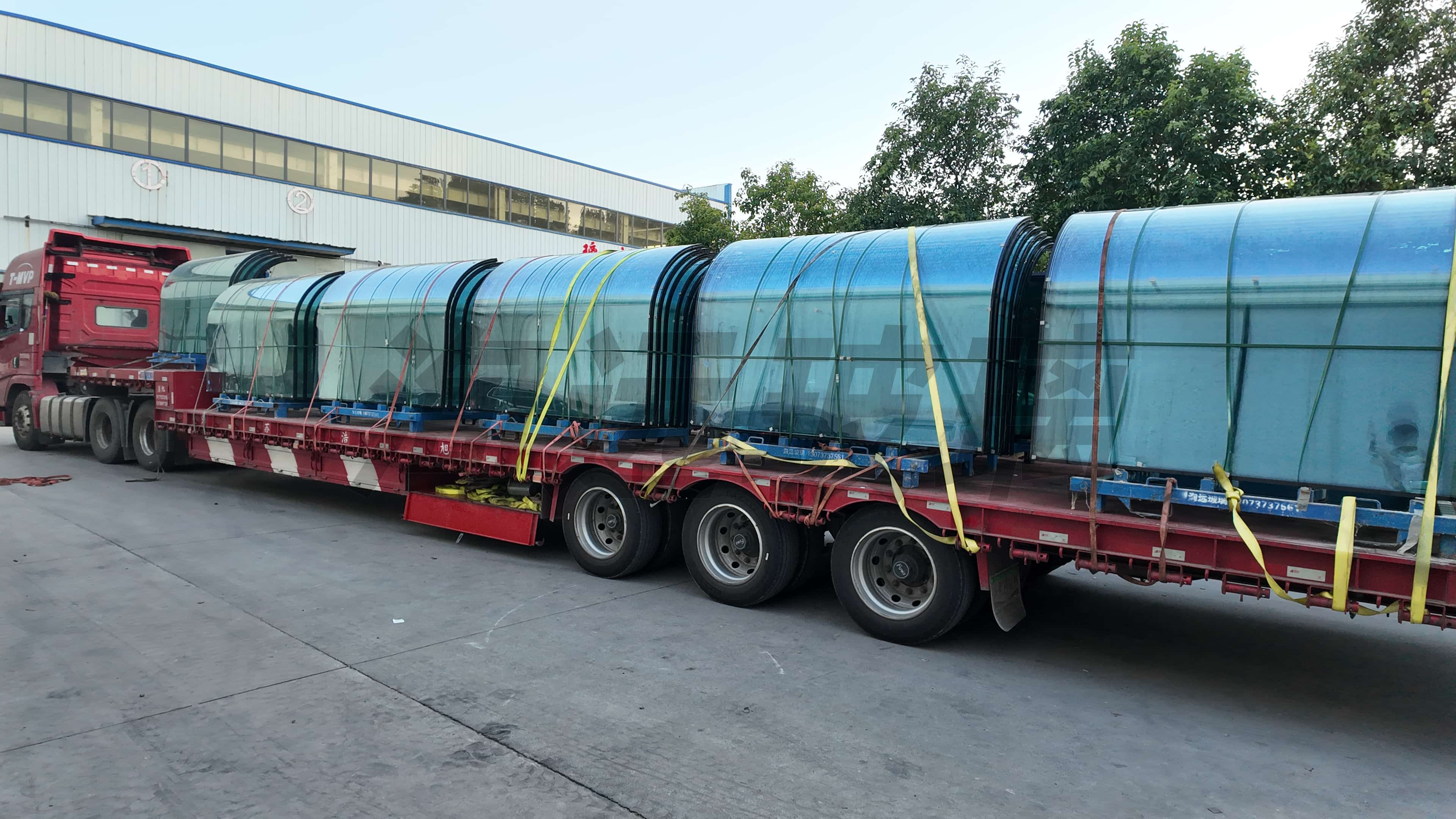

We issue detailed fabrication drawings within 24 hours (free of charge), and assist with glass selection, structural load calculation and node detailing. Shaped units are packed to a dedicated scheme with lifting points marked, and we provide lifting guidance.
4. Pricing and case reference
Pricing is calculated by square metre plus a fabrication difficulty coefficient — shaped units differ one from another, so a plain area-based quote understates the real input. We have supported shaped curved facades for a commercial complex atrium and a shaped bent decorative face at an exhibition hall, where batch consistency was the critical factor.
Three checks before ordering
Can the supplier answer the boundary parameters — minimum shaped-bend radius and maximum arc length?
Is first-piece checking plus in-process sampling documented?
Is there a stated turnaround for detailing drawings?
