XunYuan Glass (Henan XunYuan Glass Co., Ltd.) is a specialized bent tempered glass manufacturer with an in-house factory of approx. 7,000 sqm. Cutting, edging, washing, tempering, laminating and insulating are all completed in-house. We focus on curved tempering (plus heat bending) and serve architectural curtain walls, skylights, commercial complexes, high-end residential projects and overseas customers.
1. Product Overview
Irregular curved tempered glass is formed by heating, bending over a mold and rapid cooling, combining complex curved profiles with the strength and impact resistance of tempered glass. Minimum bending radius: 300mm for regular single-curvature bends, 350mm for irregular multi-curve bends. Single-piece arc length up to 8m and height up to 6m; thickness range 5-19mm.
2. Key Advantages
l Precise small-radius forming with three double-chamber forced-convection tempering furnaces; flatness and wave distortion within national standard tolerances.

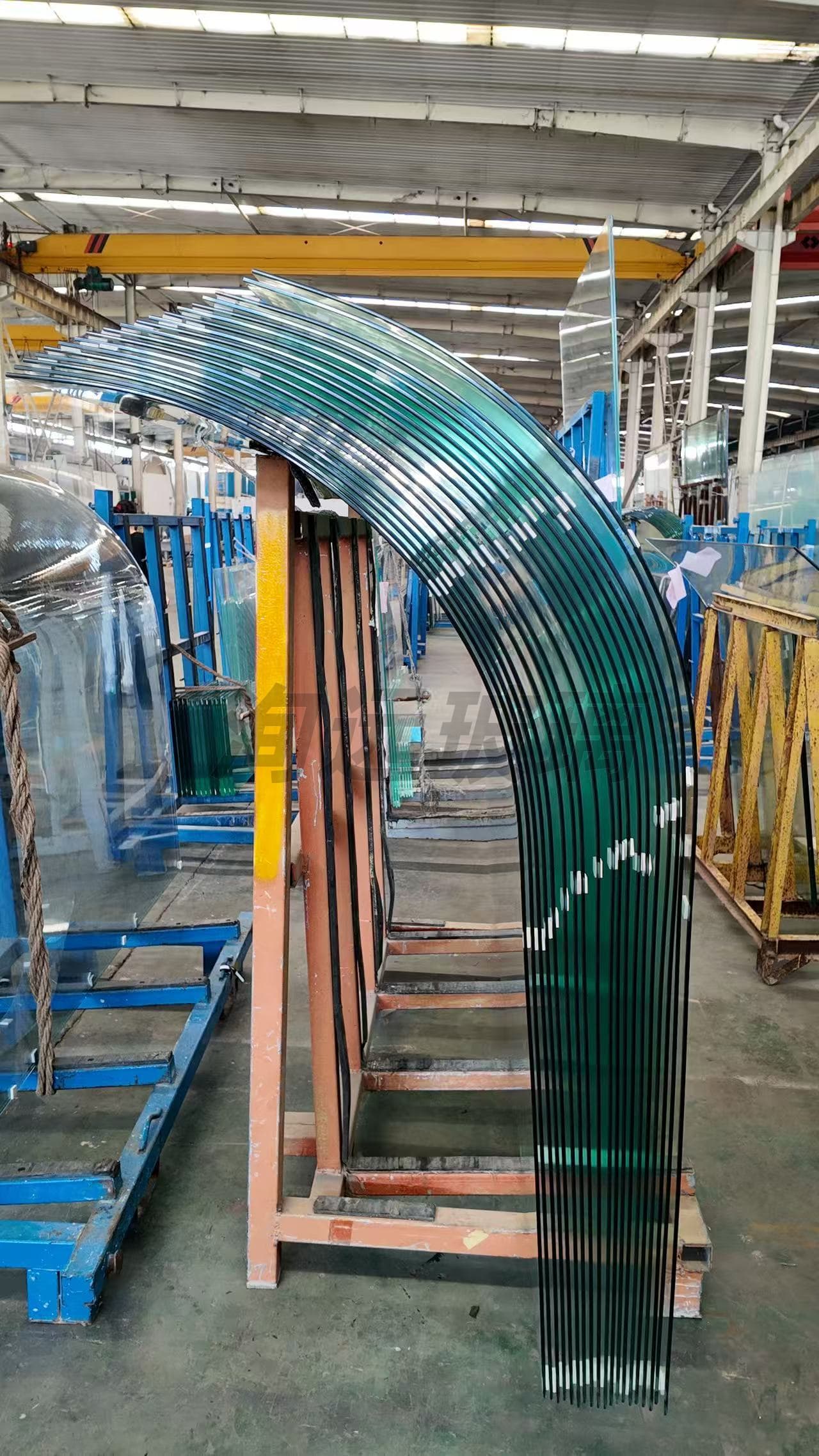

l Multi-curve capability: J-bend, hook bend, U-bend, straight-bend-straight, S-shape, parabolic and spherical double-curve profiles; custom edge profiling, rounded corners, holes and notches per drawing.
l Large-format bending: arc length up to 8m for wide-span curved facades and skylight components.
l Combined processing: curved + insulated, curved + laminated (SGP), curved + Low-E, curved + ceramic frit.
l CCC certification; raw glass from leading brands (Xinyi, CSG, Taiwan Glass, Jinjing), low-iron ultra-clear options available.
3. Applications
Curved and free-form building facades, skylights and domes, panoramic elevator glass, spiral staircase balustrades, auto showroom and flagship store curved shopfronts, curved balcony glazing and interior curved partitions.
4. Engineering Service

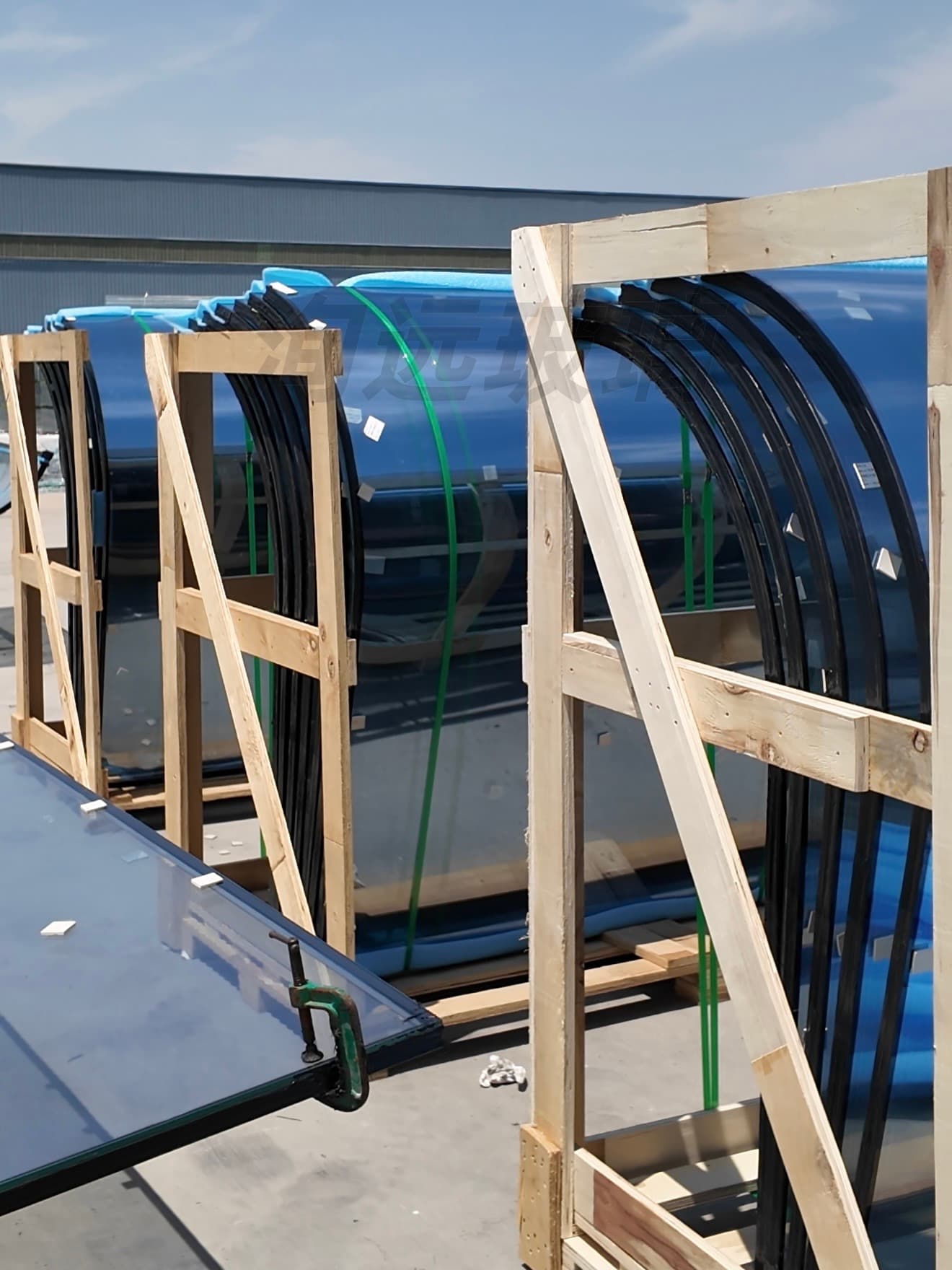

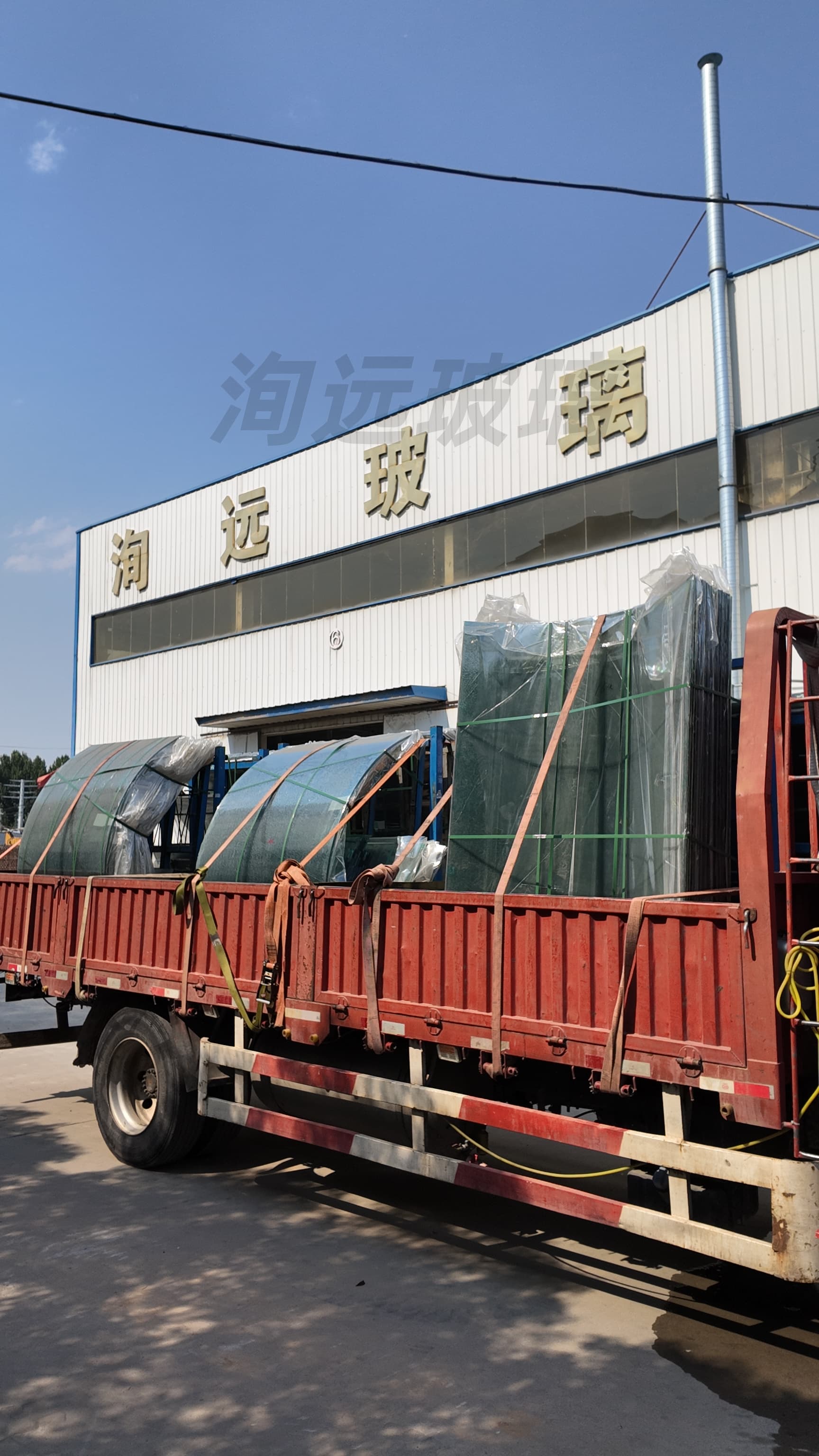

Free 24-hour shop-drawing development from CAD files or samples; glass selection advice, structural load calculation and node detailing support for design institutes. MOQ from one piece; standard lead time 7-10 days, 24-hour express option. In-house logistics for domestic and overseas delivery, dedicated transport solution for over-wide glass with lifting guidance.
5. Representative Projects
Curved panoramic elevator glass and laminated curved balustrades for hospital and healthcare projects; 4m-wide 12mm ultra-clear SGP laminated shopfront for a luxury flagship store in Shanghai; curved facade for a commercial complex in Jingzhou with single arc length over 6m; overseas supply experience including airport curtain walls in Malaysia and landmark buildings in the Middle East.
Send us your drawings or samples - XunYuan Glass will evaluate the curvature feasibility and provide a processing proposal free of charge.
