1. Product Overview
HENAN XUNYUAN GLASS CO., LTD (brand: Xunyuan Glass) is a specialized deep-processing manufacturer of extra-large curved glass, focusing on long-arc bent tempered glass, small-radius special-shaped curved glass, and curved laminated insulating glass. We operate our own production base of about 7,000 m² covering cutting, edge grinding, washing, tempering, lamination and insulating glass lines in-house, producing strictly in accordance with national standards such as GB 15763.2 "Safety Glass in Building – Part 2: Tempered Glass", with CCC mandatory certification. We serve architecture design institutes, curtain wall contractors, skylight/roof contractors, high-end door & window companies, property developers and foreign trade buyers.
Extra-large curved laminated insulating glass combines three processes in one unit: first the glass is bent into a curved profile by bent tempering, then laminated with PVB or SGP interlayers under high pressure, and finally assembled into an insulating glass unit (IGU). It delivers aesthetics, safety and energy efficiency at the same time. Our capability covers an arc length up to 8 meters, height up to 6 meters, a minimum bending radius of 300 mm, laminated glass up to 4.5 m × 7 m, insulating units up to 6 m × 8 m, and thickness from 5 mm to 19 mm — ideal for large-span curved curtain walls, domes and skylights, panoramic elevator glass, spiral staircases, and curved partitions, with one-piece panels that eliminate visible seams.
2. Core Product Advantages
2.1 One-Piece 8m Arc Forming, Smooth Surface without Joints

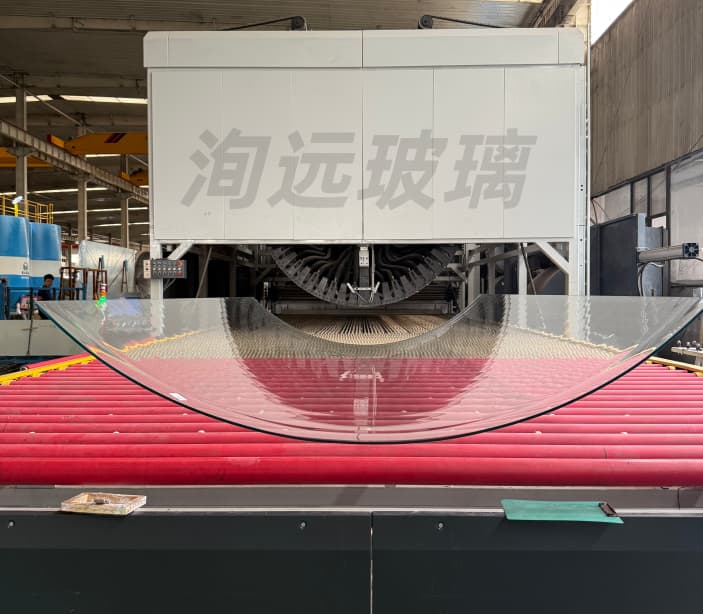

Our extra-wide bent tempering furnace supports an arc length up to 8,000 mm and height up to 6,000 mm, with convex, concave and double-curved forming. A single curved panel can cover a full arc of a large-span curtain wall, reducing joints, improving façade integrity and waterproofing, with uniform curvature and low optical distortion.
2.2 Small Radius R300mm Forming — Advanced Special-Shape Capability
Minimum bent radius of 300 mm (350 mm for special shapes), supporting J-shape, hook-shape, U-shape, straight-bend-straight, S-shape, parabolic and spherical double/multi-curved profiles, suitable for panoramic elevators, spiral staircase railings, luxury shopfronts and arc door/window projects.
2.3 SGP/PVB Dual Interlayer, Upgraded Safety

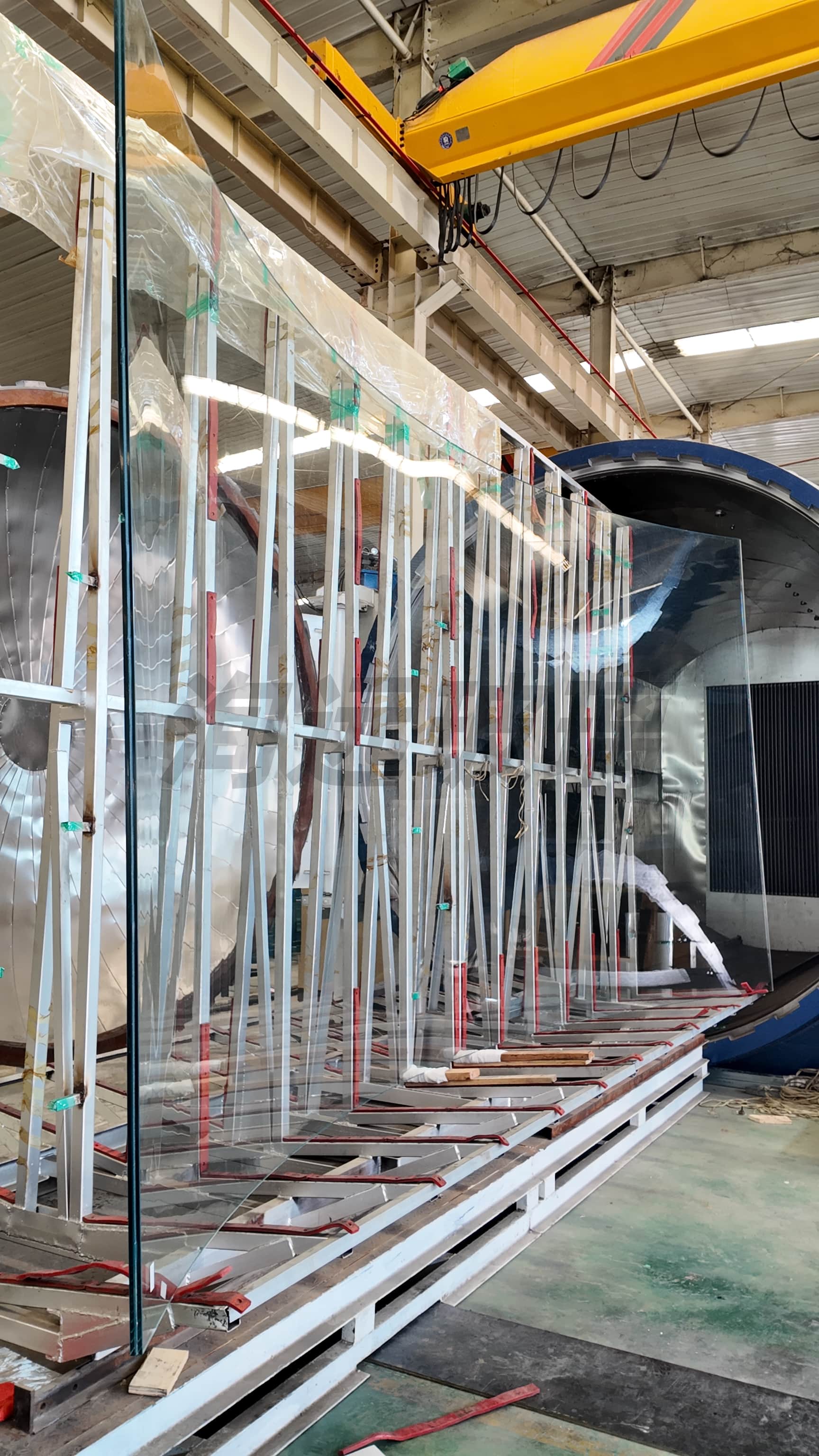

Equipped with two large autoclaves (4.5 m × 7 m and 3.3 m × 13 m), laminated panels up to 4.5 m × 7 m, with both PVB and SGP options. SGP ionomer film offers high tear resistance and moisture/salt-spray resistance; even if the glass breaks, fragments stay bonded to the interlayer, providing a high level of safety for high-rise facades and skylights.
2.4 Laminated + Insulated Composite, Energy Saving & Sound Insulation in One Step
Combining curved lamination with an insulating cavity (optional Low-E coating) significantly lowers the U-value while the laminated damping layer attenuates low-frequency noise — suited for street-facing commercial facades, coastal wind-load projects and hotel façades.
2.5 6-Meter Extra-Wide Flat Tempered Support, One-Stop Delivery
Supporting flat tempered panels up to 6 m × 8 m (up to 2.66 m × 13 m long), so curved and flat glass for the same project can be processed with unified parameters, solving color-difference and tolerance mismatch issues from multiple suppliers.
2.6 CCC Certified, Smooth Project Acceptance
Products carry CCC mandatory certification, using first-tier raw glass from Xinyi, CSG (Nanbo), Taiwan Glass and other leading brands, with full-process quality control, test reports and acceptance documentation for bidding and final acceptance.
3. Main Engineering Configurations
1. Extra-large curved SGP laminated insulating glass: 8mm bent tempered + SGP + IGU — first choice for curved curtain walls and skylights;
2. Small-radius curved laminated glass: R300–R500 + PVB/SGP — panoramic elevators, spiral staircases, showcase railings;
3. Curved Low-E insulating glass: bent tempered + Low-E + IGU — street-facing commercial facades, hotel façades;
4. Extra-clear curved laminated insulating glass: ultra-clear low-iron glass + lamination + IGU — high-end showrooms, cultural tourism projects;
5. Extra-wide flat tempered glass: 6 m × 8 m, supplied together with curved glass for the same project.
4. Application Scenarios
1. Large-span curved curtain walls: commercial complexes, office towers, transport hubs;
2. Domes & skylights: atrium roofs, cultural tourism projects, sunrooms;
3. Panoramic elevators & spiral staircases: curved shaft glass, laminated bent railings;
4. High-end retail & luxury shopfronts: small-radius display glass;
5. Hotels & high-end residences: curved partitions, panoramic floor-to-ceiling windows;
6. Car showrooms (4S stores): large curved display fronts.
5. Regional Engineering Solutions
1. Large temperature-difference regions (North/Central China): curved laminated + IGU for thermal insulation and anti-condensation;
2. Coastal salt-spray regions: SGP laminated curved IGU, salt-spray resistant, no delamination;
3. High-rise wind-load regions: thickened bent tempered + SGP lamination;
4. Street-noise environments: laminated damping layer + IGU cavity for sound insulation;
5. Cultural tourism landmarks: extra-clear curved laminated IGU for maximum transparency.
6. Factory Service Advantages

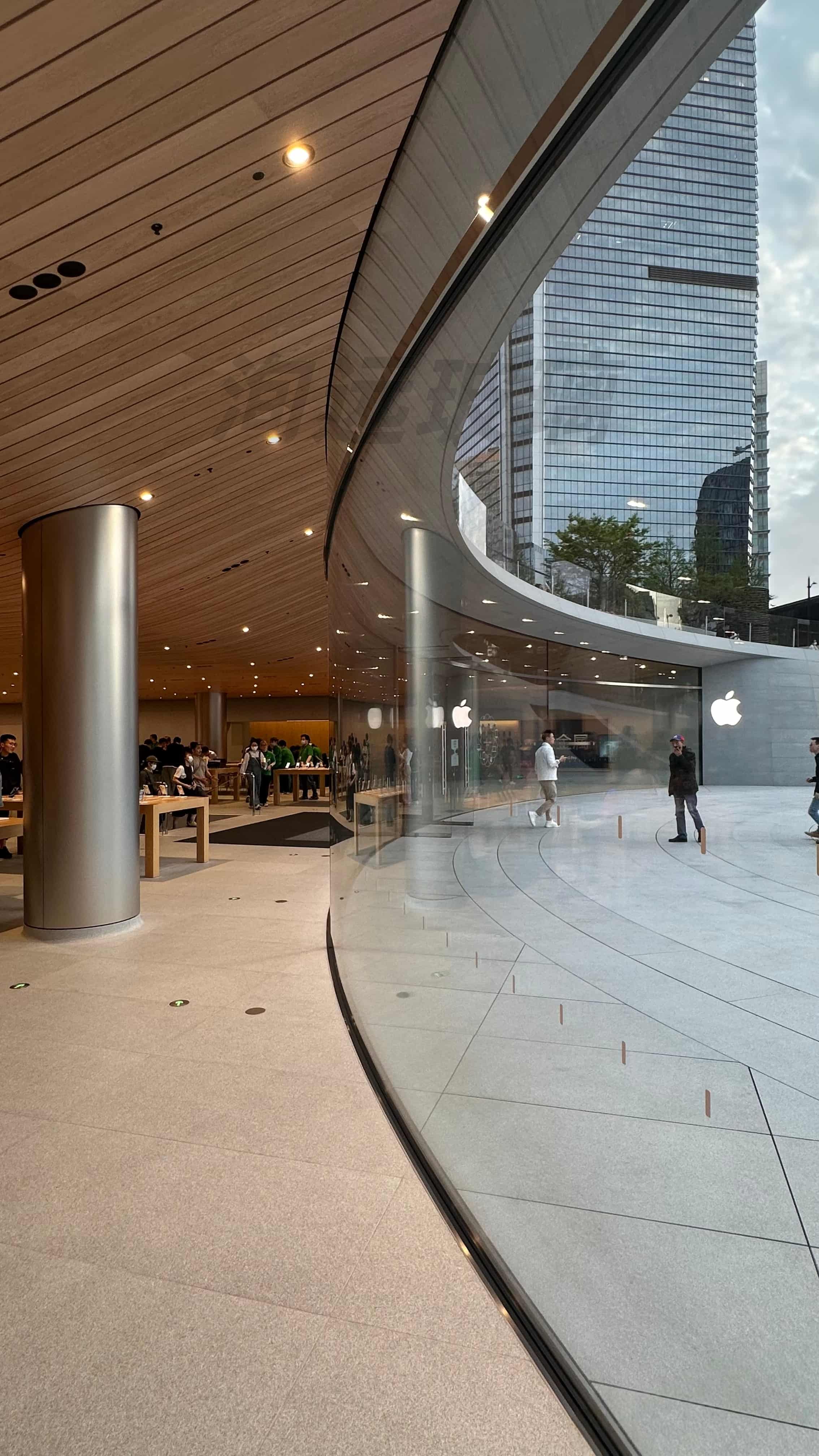

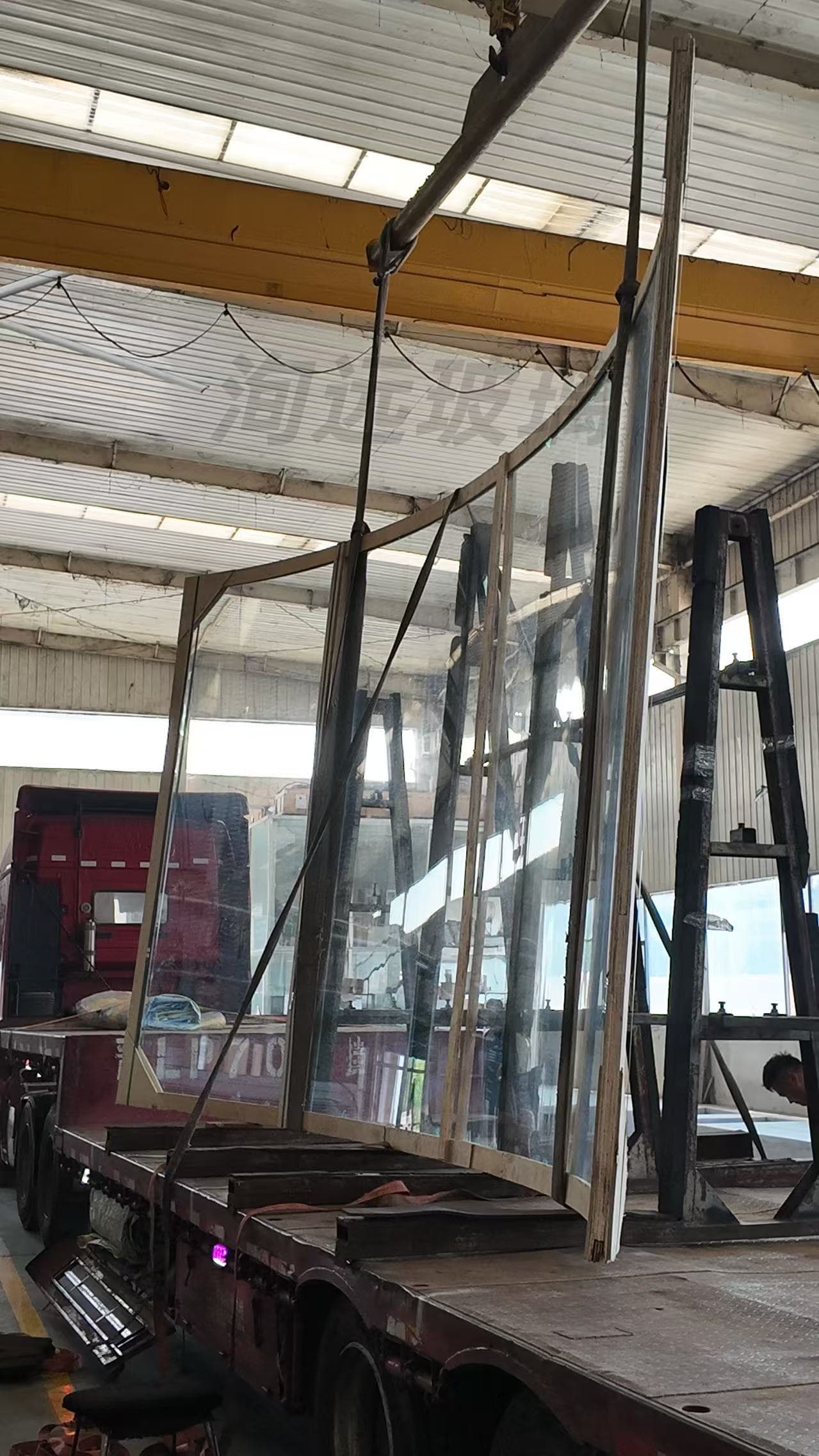

Direct factory without middlemen; minimum order from 1 piece; standard delivery 7–10 days, urgent orders within 24 hours; free CAD shop drawings within 24 hours; support for glass selection, structural load calculation and joint detailing; wooden crate/steel frame/vacuum packing; own logistics for nationwide delivery and export shipping, dedicated transport solutions for 6-meter-wide glass with lifting guidance. Representative projects include a luxury brand flagship store in Shanghai (4m-wide 12mm extra-clear SGP laminated shopfront), a Middle East landmark building, Malaysia airport curtain wall, and a US headquarters building.
7. Cooperation Invitation
For extra-large curved laminated insulating glass, curved curtain wall glass, dome/skylight glass or panoramic elevator curved glass, please contact HENAN XUNYUAN GLASS CO., LTD — a direct factory supporting non-standard extra-large dimensions, batch supply and fast scheduling, committed to stable quality, transparent pricing and complete after-sales service.
