XunYuan Glass (Henan XunYuan Glass Co., Ltd.) is a specialized ceramic frit / polka dot glass manufacturer with an in-house factory where cutting, edging, washing, tempering, laminating and insulating are all completed on site. We focus on curved tempering (plus heat bending) and serve architectural curtain walls, skylights, commercial complexes, high-end residential projects and overseas customers.

1. Product Overview

Polka dot glass is a type of ceramic fritted glass. An inorganic ceramic frit is applied to clear or low-iron glass via silk-screen or digital printing to form a regular dot pattern, then dried and fired at approximately 600-700°C so that the frit fuses with the glass body, followed by tempering or curved tempering. The result retains transparency and safety while providing shading, glare control and privacy — including on curved and irregular surfaces.

2. Key Advantages

1. High-temperature fired frit bonds with the glass: resistant to acids/alkalis, weathering and aging — no fading, no peeling. Not a film or a coating.

2. Tempered strength approximately 3-5× that of annealed glass of the same thickness; breaks into blunt small particles for safety.

3. White silk-screen frit glass can achieve a shading coefficient of about 0.32, reducing solar heat gain, cooling loads and glare while preserving privacy.

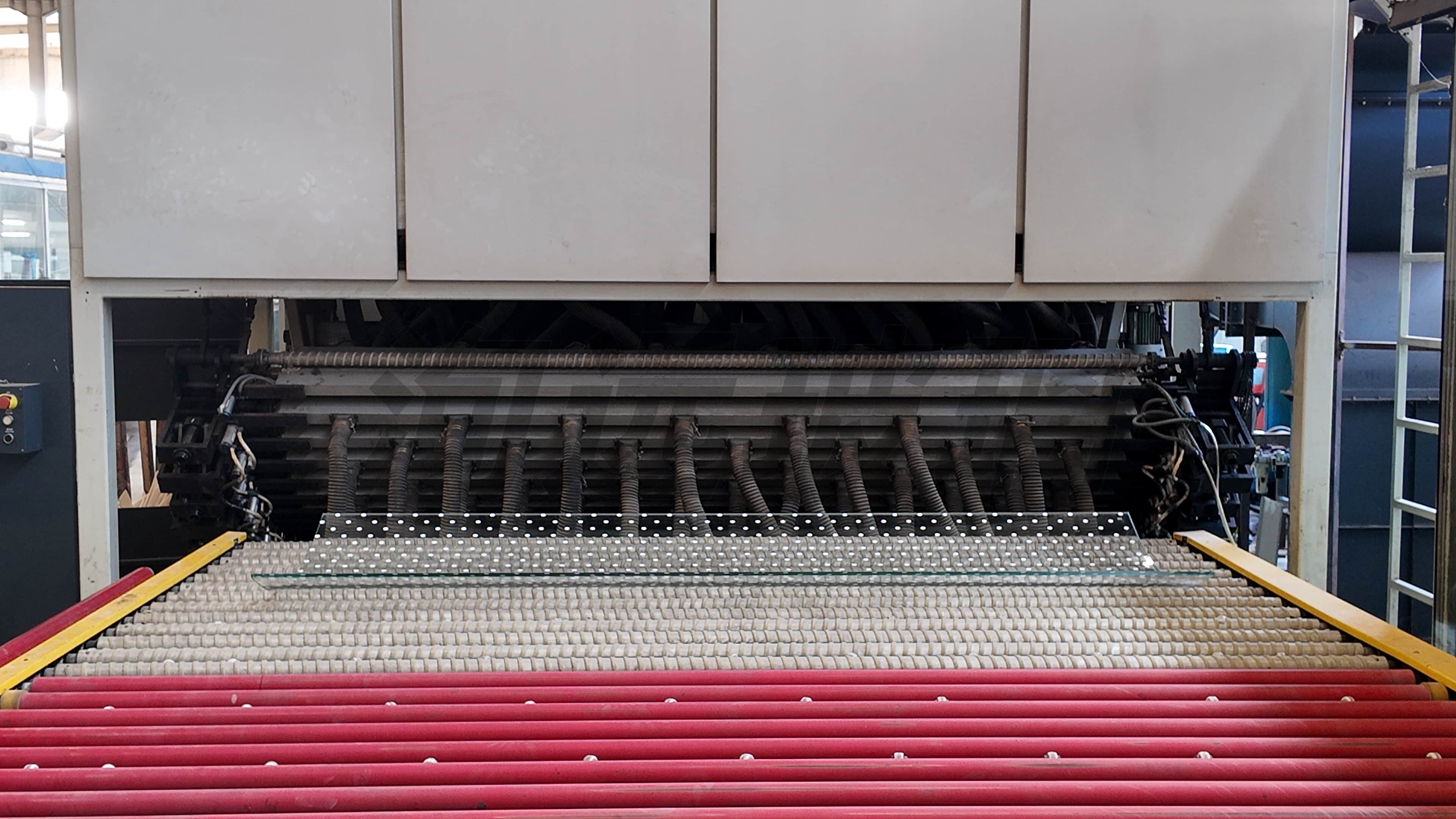

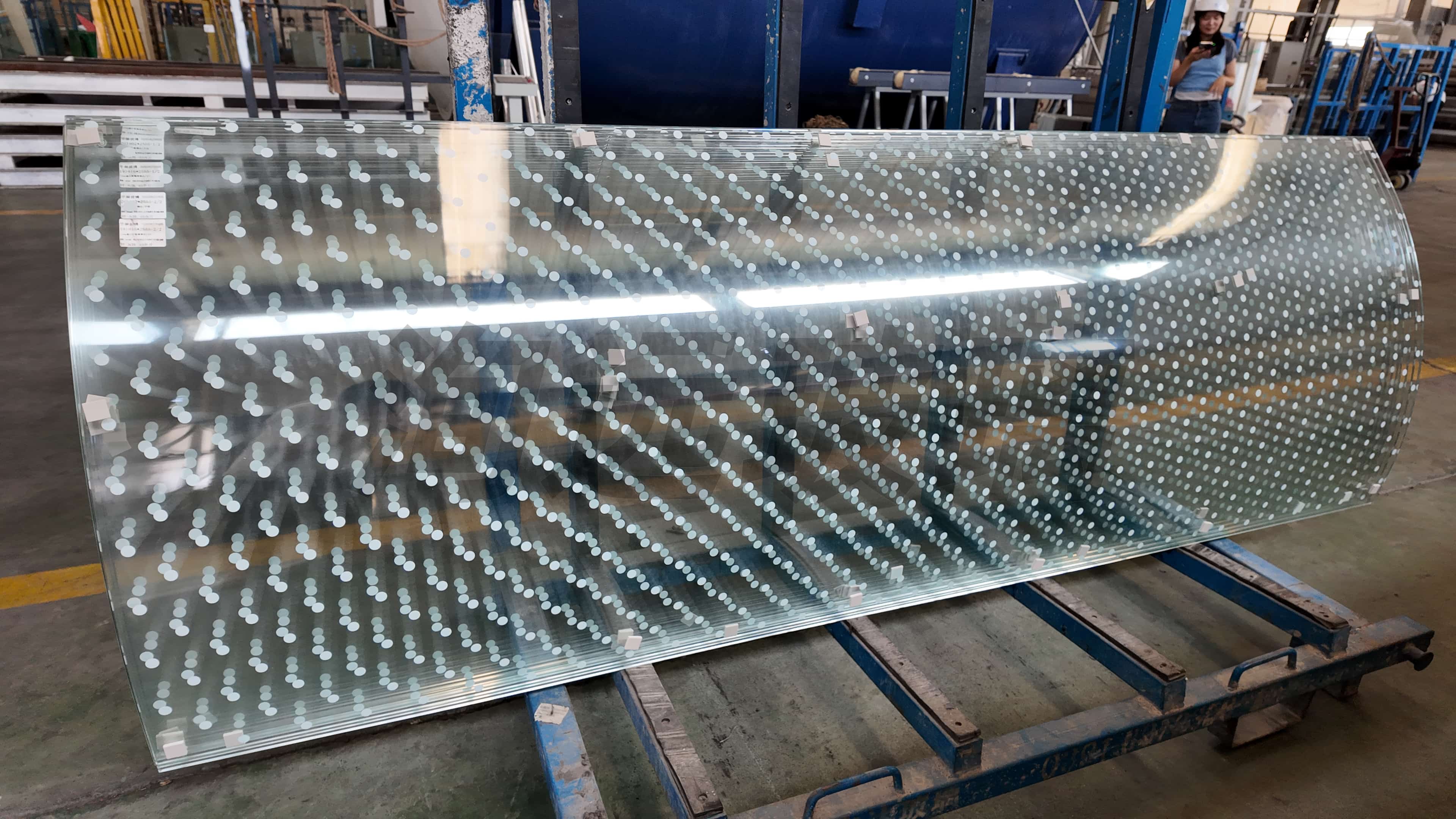

4. Curved + frit composite (core differentiation): well-formed dot spacing, dot diameter and layout on curved, curved-surface and irregular profiles. Arc length up to 8m; 6m ultra-wide tempering line.

5. Large format and precision: flat tempering up to 6m wide × 13m long; small radius from 300mm, irregular shapes from 350mm; thickness 5-19mm.

6. CCC certification and test reports; raw glass from first-tier mills (CSG, Xinyi, Yaopi, Taiwan Glass, Jinjing), ultra-clear low-iron available; diagonal tolerance, flatness and waviness controlled within national standard limits.

3. Product Range

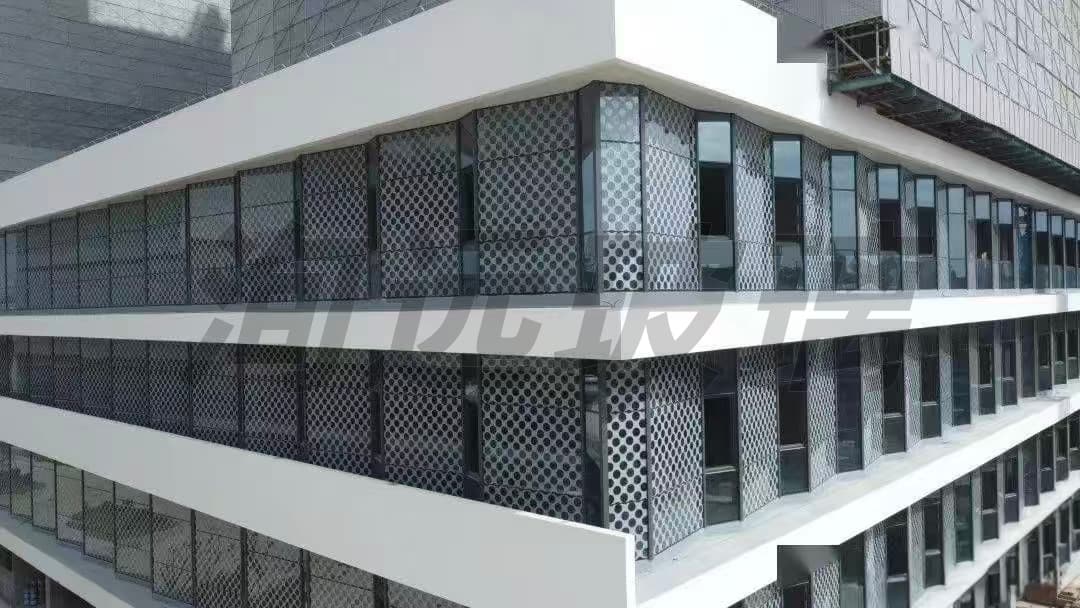

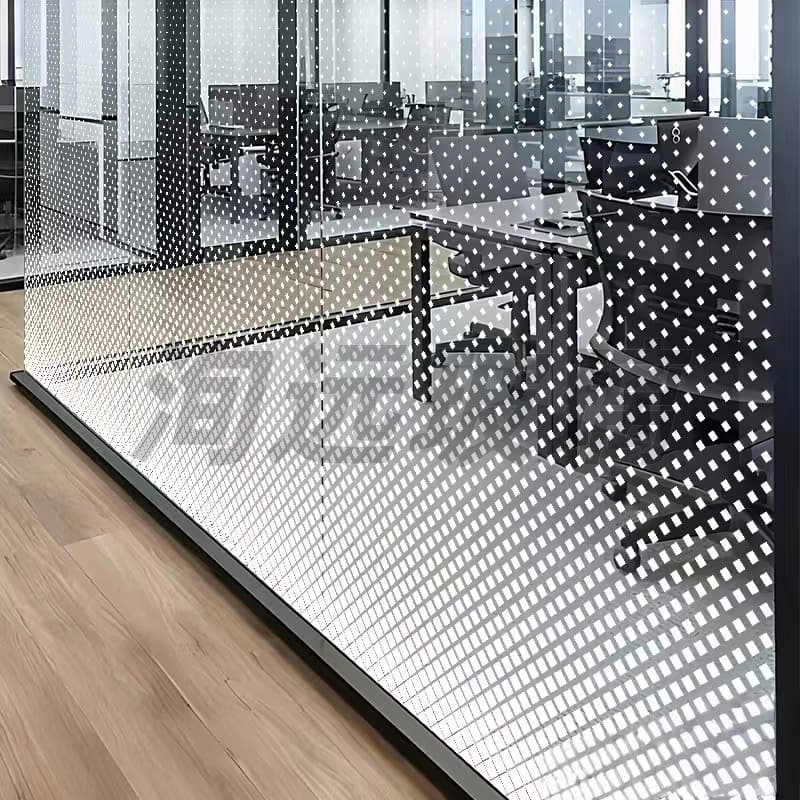

· Ceramic frit tempered glass (dot / polka pattern, flat) — facade grids, shading spandrels, interior partitions;

· Ceramic frit insulated glass — curved facades, sunrooms, sliding glazing, solar control with insulation;

· Ceramic frit laminated glass (incl. SGP) — panoramic elevators, spiral staircases, skylight balustrades, anti-fall;

· Ceramic frit Low-E glass — energy-saving facades, premium facades;

· Curved + frit composite glass — curved facades, irregular curtain walls, showroom and flagship store curved forms (core differentiator).

4. Applications

Curved and free-form building facades, shading spandrels (covering structural members), skylights and domes, panoramic elevator glazing, corridor balustrades, auto showroom curved curtain walls, flagship store curved shopfronts, interior curved partitions, high-end residential curved balcony glazing and cabinet glass.

5. Engineering Service

MOQ from one piece. Free 24-hour shop drawing development from CAD files or samples; glass selection advice, structural load calculation and node detailing support for design institutes. Standard lead time 7-10 days, 24-hour express option. In-house logistics for domestic and overseas delivery, dedicated transport solution for over-wide glass with lifting guidance.

6. Representative Projects

Jingzhou commercial complex (8mm tempered curved + insulated composite, single arc length over 6m); curved panoramic elevator and corridor balustrade laminated glass for a healthcare project with precise small-radius forming; a 4m-wide 12mm ultra-clear SGP laminated shopfront for a luxury flagship store in Shanghai; overseas supply including a 3.8m×6m 12mm ultra-clear SGP facade for a Manhattan high-end project, airport curtain walls in Malaysia, landmark buildings in the Middle East, and a 4m ultra-wide facade for a US headquarters building.

7. Specification Summary

Send us your drawings or samples - XunYuan Glass will evaluate dot size, coverage and curvature feasibility and provide a processing proposal free of charge.
