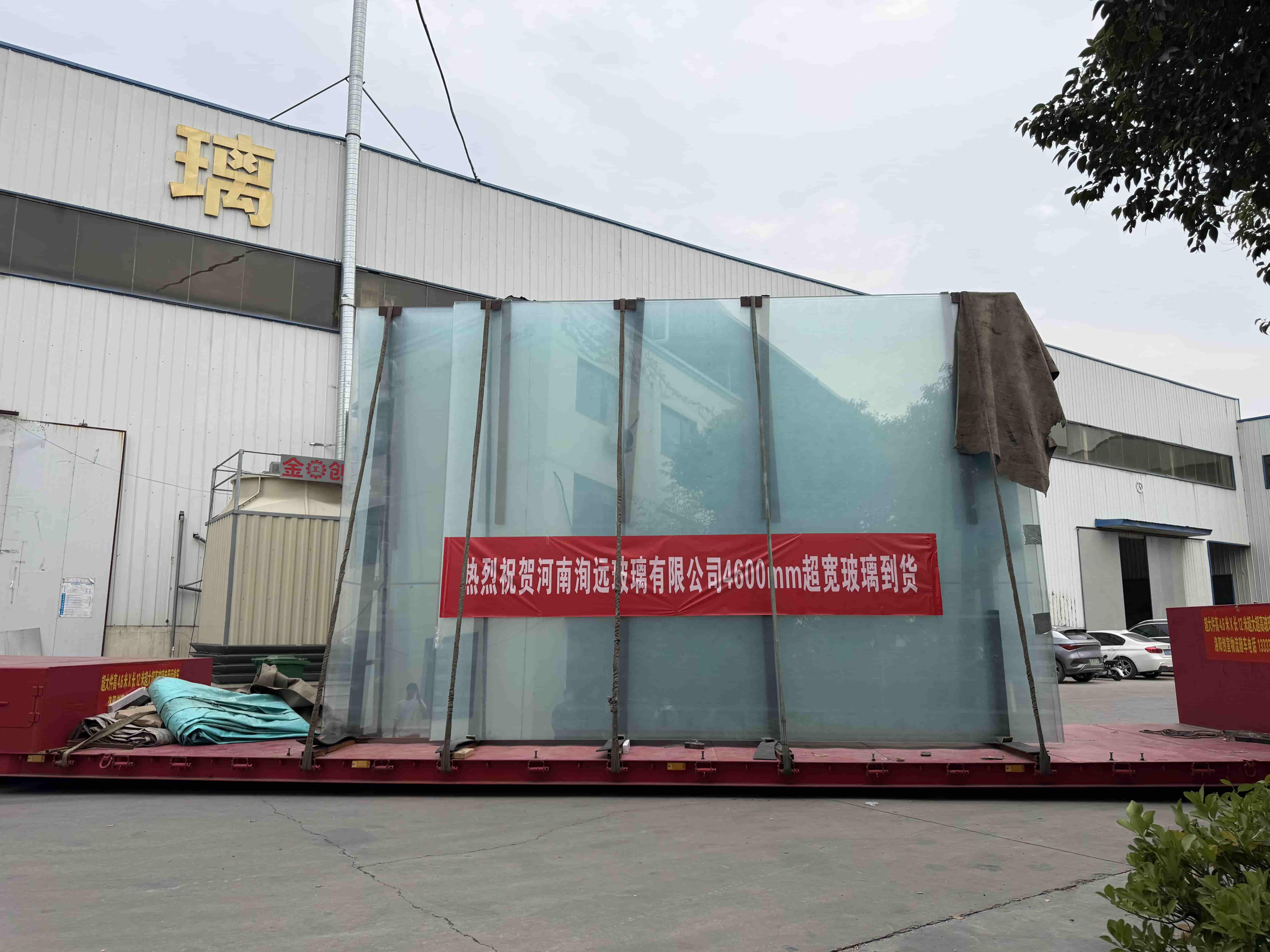

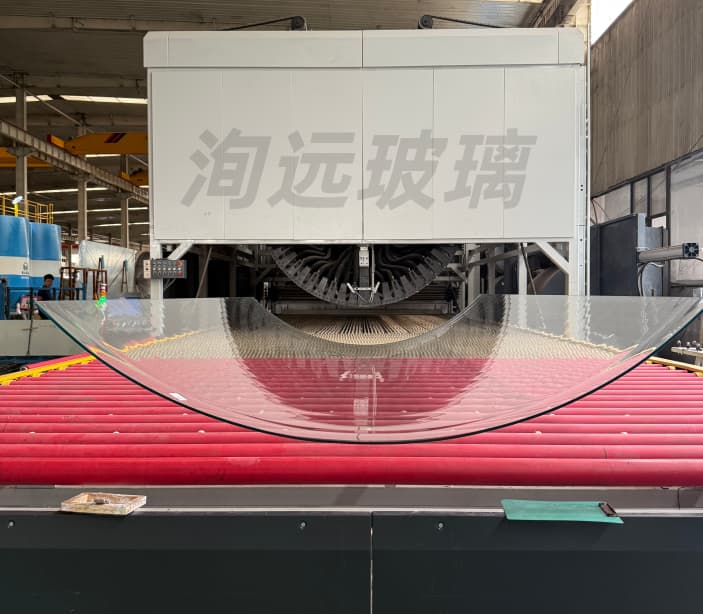

Henan Xunyuan Glass Co., Ltd. supplies and fabricates extra-wide curved glass for curtain wall, exhibition and commercial space projects. Our full production line covers flat tempered glass, curved tempered glass, hot bent glass and special-shaped curved glass. The maximum extra-wide size reaches 6m×8m, and the maximum extra-long size is 3.3m×20m. We also provide SGP laminated and insulated composite glass. For curved glass, dimension calculation is conducted separately along the arc length and panel width during drawing development. Partition positions are confirmed before arc path design. The minimum radius for standard curved tempered glass starts from 300mm, and the minimum radius for special-shaped curved glass starts from 350mm.
1. Specifications & Processing Limits
| Item | Specification |
|---|
| Processing Technology | Flat tempering, curved tempering, hot bending, special-shaped bending; SGP lamination; insulated composite glazing |
| Max Panel Size | Extra-wide: 6m×8m; Extra-long: up to 3.3m×20m |
| Curvature Limit | Standard curved tempered glass: min radius ≥300mm; Special-shaped curved glass: min radius ≥350mm |
| Dimension Calculation | Calculate curved glass in arc length and panel width directions; partition and nesting based on drawings |
| Quality Control | Flatness and wave distortion comply with national standards; parameters adjusted order by order |
| Production | All composite processes completed in-house, no outsourced bulk processing |
2. Typical Application Scenarios

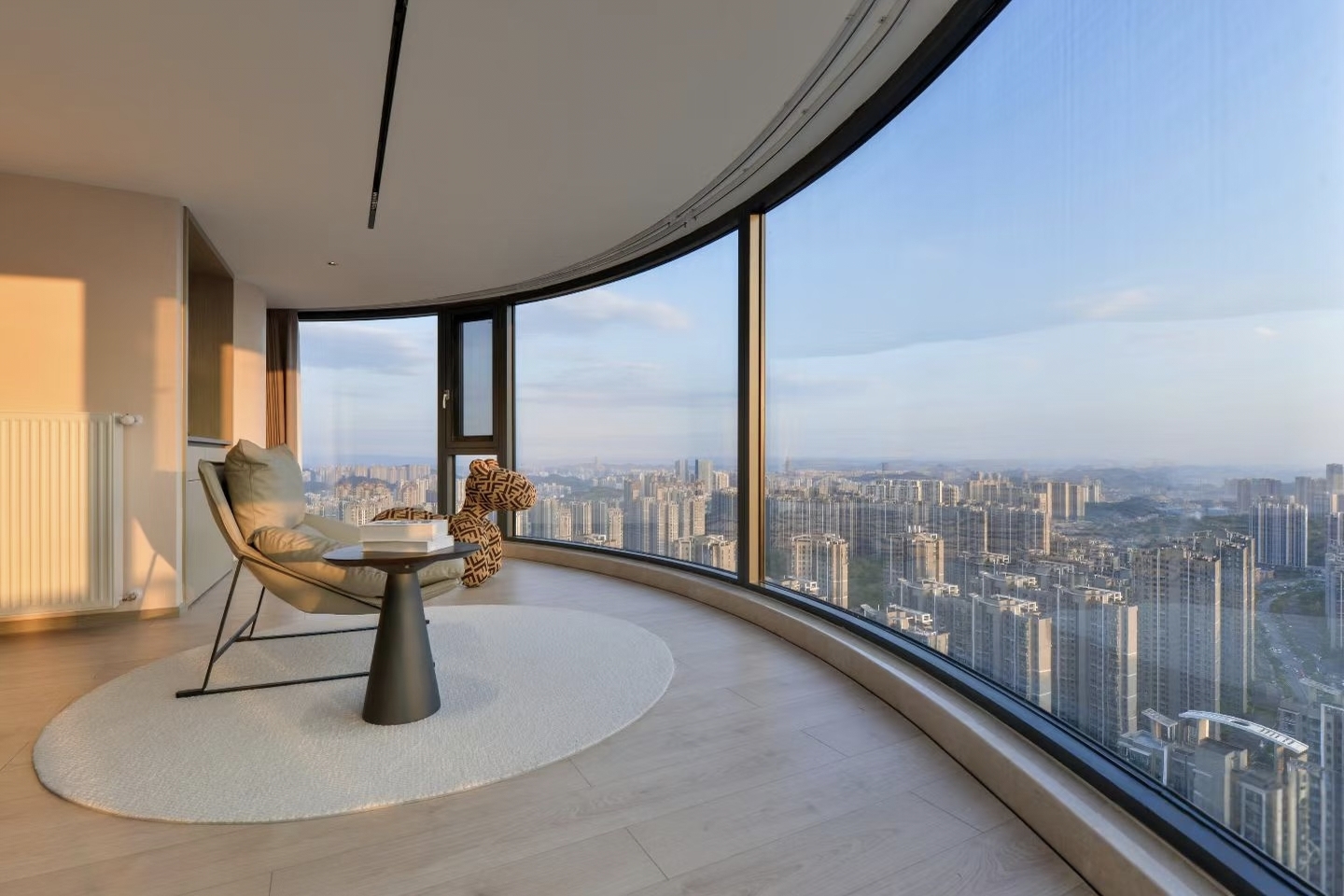

Curved curtain wall facade, commercial atrium skylight, exhibition hall curved facade, curved shop window for brand flagship store, hotel lobby curved wall, corridor of wellness space, curved daylighting belt of transportation hub, curved canopy and viewing platform.
3. Graded Processing Solutions
| Grade | Application Condition | Structure Configuration | Client Benefits |
|---|
| Standard Curved Surface | Radius and panel size within standard range | Curved tempered glass + standard laminated glass | Controllable cost and lead time |
| Small-radius Curved Surface | Radius close to process limit, high aesthetic requirement | Curved tempered glass with radius & panel combination checked; customized parameters per order | Realize design intent |
| Extra-wide Curved Surface | Single panel near size limit, composite structure required | Curved tempered / hot bent / special-shaped curved glass + composite glazing; bi-directional dimension calculation in design phase | Reduce panel joints, continuous curved appearance |
| Special-shaped & Double-curved Surface | Non-standard shape without standard mould | Custom parameters for special-shaped bending; sample available for confirmation | Achieve non-standard shapes |
4. Delivery & Technical Support

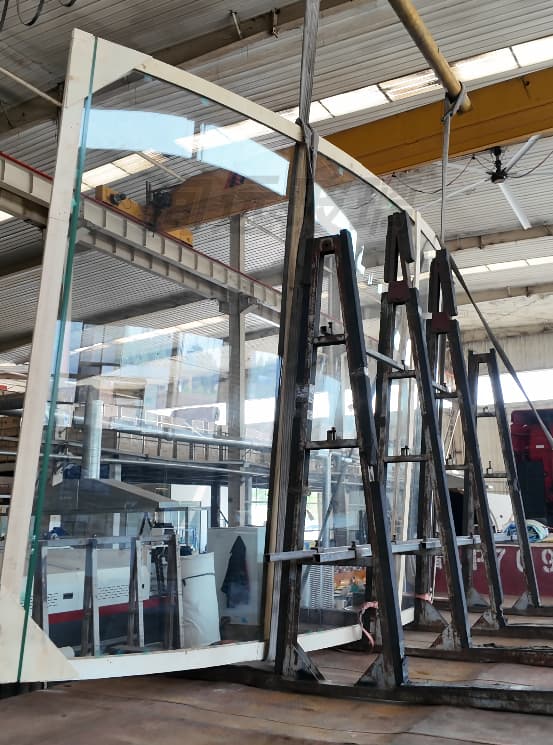

Free detailed fabrication drawings within 24 hours with CAD files or physical samples provided. Support glass selection, structural load calculation and joint detail development. Packaging and lifting plan with stress points marked before shipment, lifting guidance available. Storage and vertical placement instructions for curved glass attached with goods.
5. Three Common Pain Points in Curved Glass Procurement
Dimension limitation: Flat glass is only restricted by one dimension, while curved glass needs bi-directional calculation of arc length and panel width. The available processing range shrinks after superposition. Quotation with only one dimension is incomplete. We calculate both directions and confirm partition layout before arc design.
Matching of radius and panel size: Small-radius curved tempered glass has narrow process window. Smaller radius means limited available panel size. Both factors must be checked together. Early feedback will avoid delays in design approval.
Quotation for edge & special processing: Edge grinding, hole drilling and slotting are standard processes for curved glass. These items shall be listed separately in quotation. Unit price without breakdown tends to cause extra charges and poor comparability among manufacturers.
6. Three Verifiable Evaluation Criteria
Whether the factory can clearly state the curvature radius limit of curved glass (proof of actual manufacturing capacity).
Whether bi-directional dimension calculation has been performed for curved glass. Single-dimension reply usually means incomplete check.
Whether edge finishing and special machining items are itemized in quotation. Edge grinding, drilling and slotting are standard curved glass processes and should be listed separately.
