XunyuGlasssuppliesultra-widecurvedglassforcurtainwall,atriumandretailfacadeprojects,withfabricationdrawingsissuedwithin24hoursofreceivingCADfilesorsamples.
1.Capacity
Panelsize:upto6m×8m.
Maximumunitalongthearcdirection:8m.
Thicknessrange:5-19mm.
Processesavailable:flattempering,curvedtempering,heatbending,shapedbending,SGPlaminationandinsulatingunits.

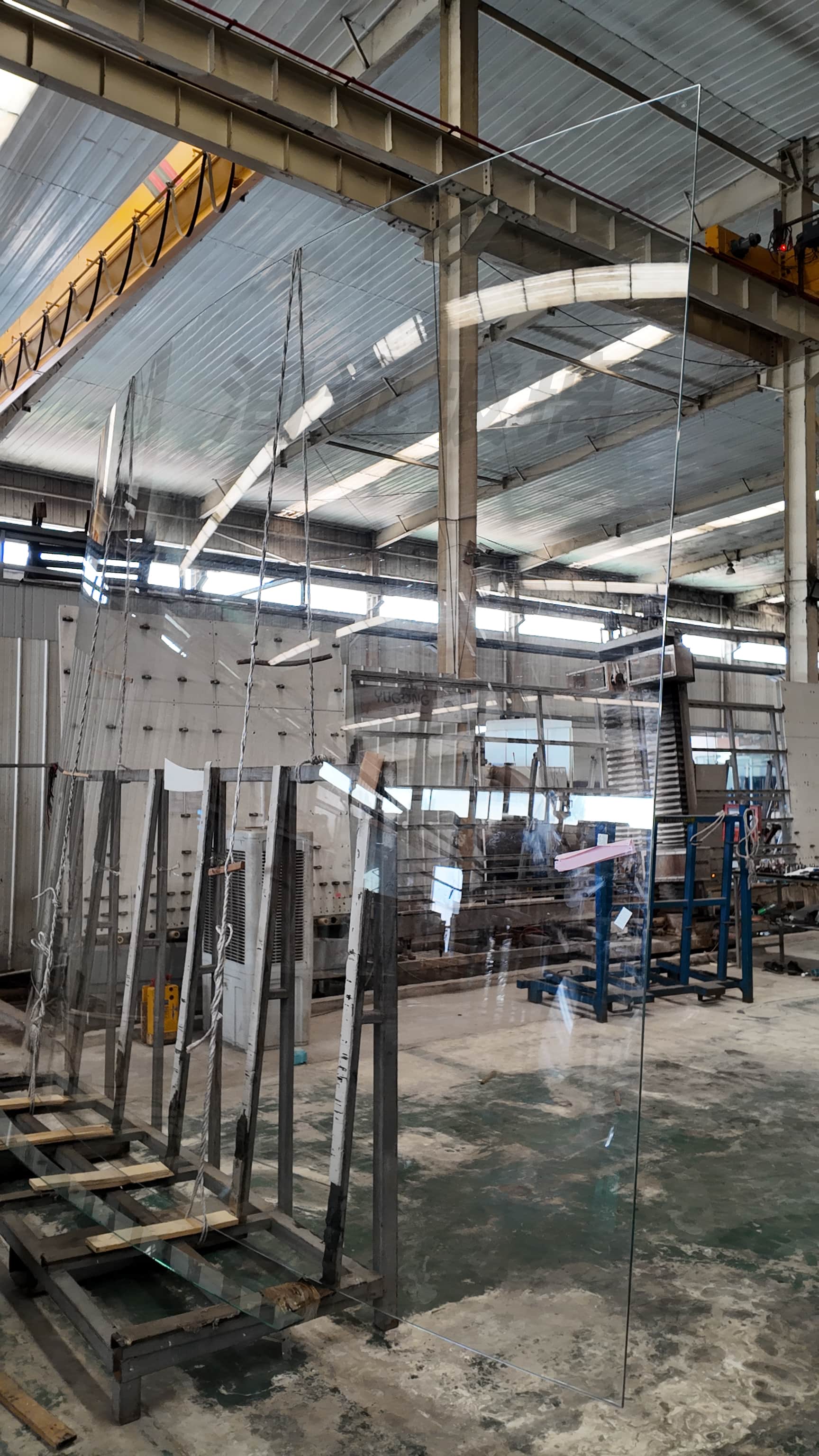

Allforming,tempering,laminatingandpackinghappenonourownproductionlines.Nothingissubcontracted,soprocessparametersdonotdegradeacrosscompanyboundaries.
Ultra-widecurvedglassisnotspecifiedthewayflatglassis.Aflatpanelisconstrainedbyonedirection.Acurvedpanelhastobecheckedintwodirectionsatonce—alongthearcandacrossthepanelwidth—andtheworkablerangenarrowsoncebothareapplied.Werunthischeckatthedrawingstage,sopaneldivisionsandarccontinuityaresettledbeforeproduction.
2.Whereitisused

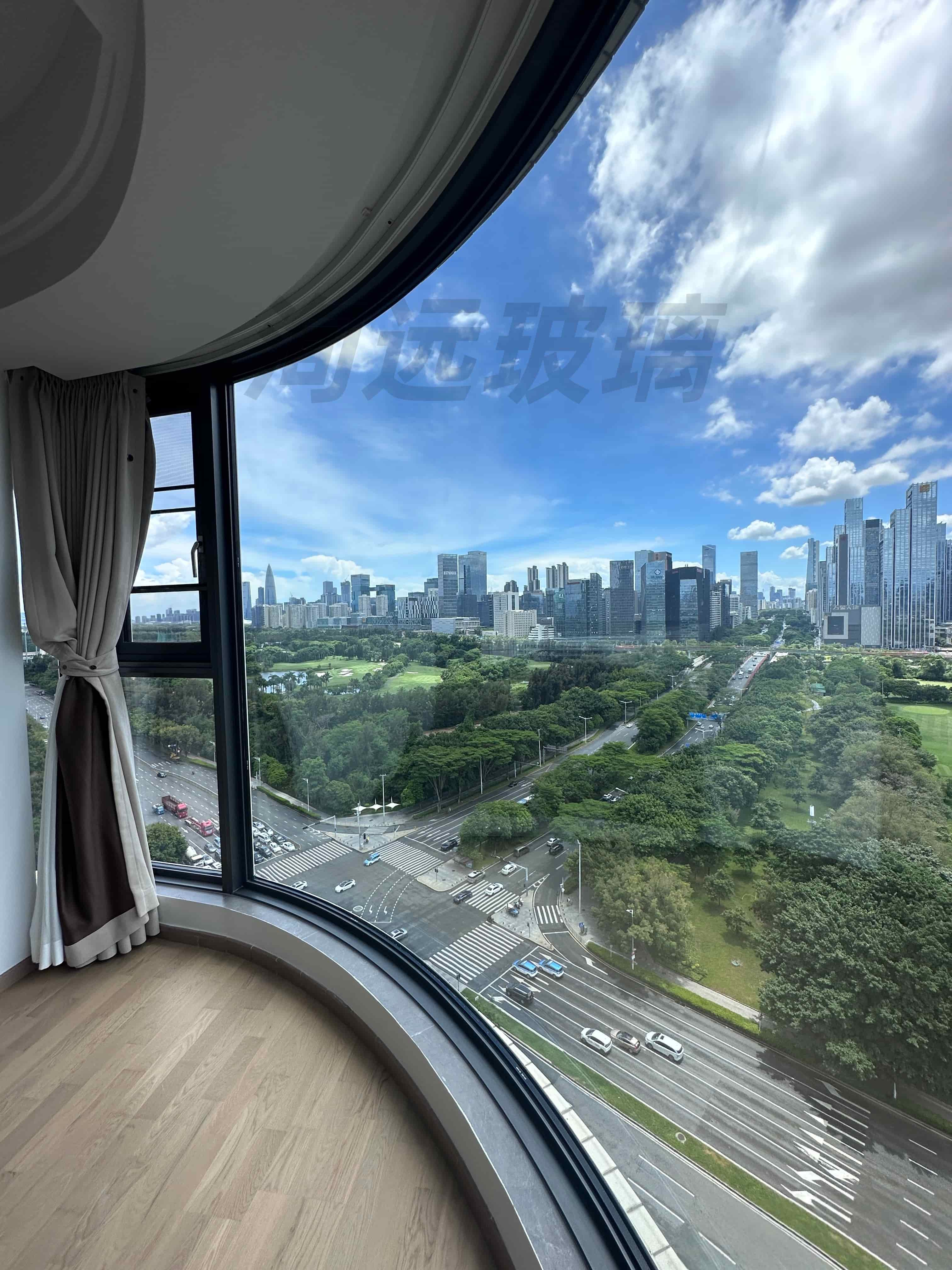

Curtainwallofcommercialcomplexes,atriumbalustrades,flagshipstorefrontages,residentiallobbyglazing,airportandtransitenclosures,culturalvenueskylights,cylindricalcolumnwrapping,hotelentrancearcades.
3.Processcontrol

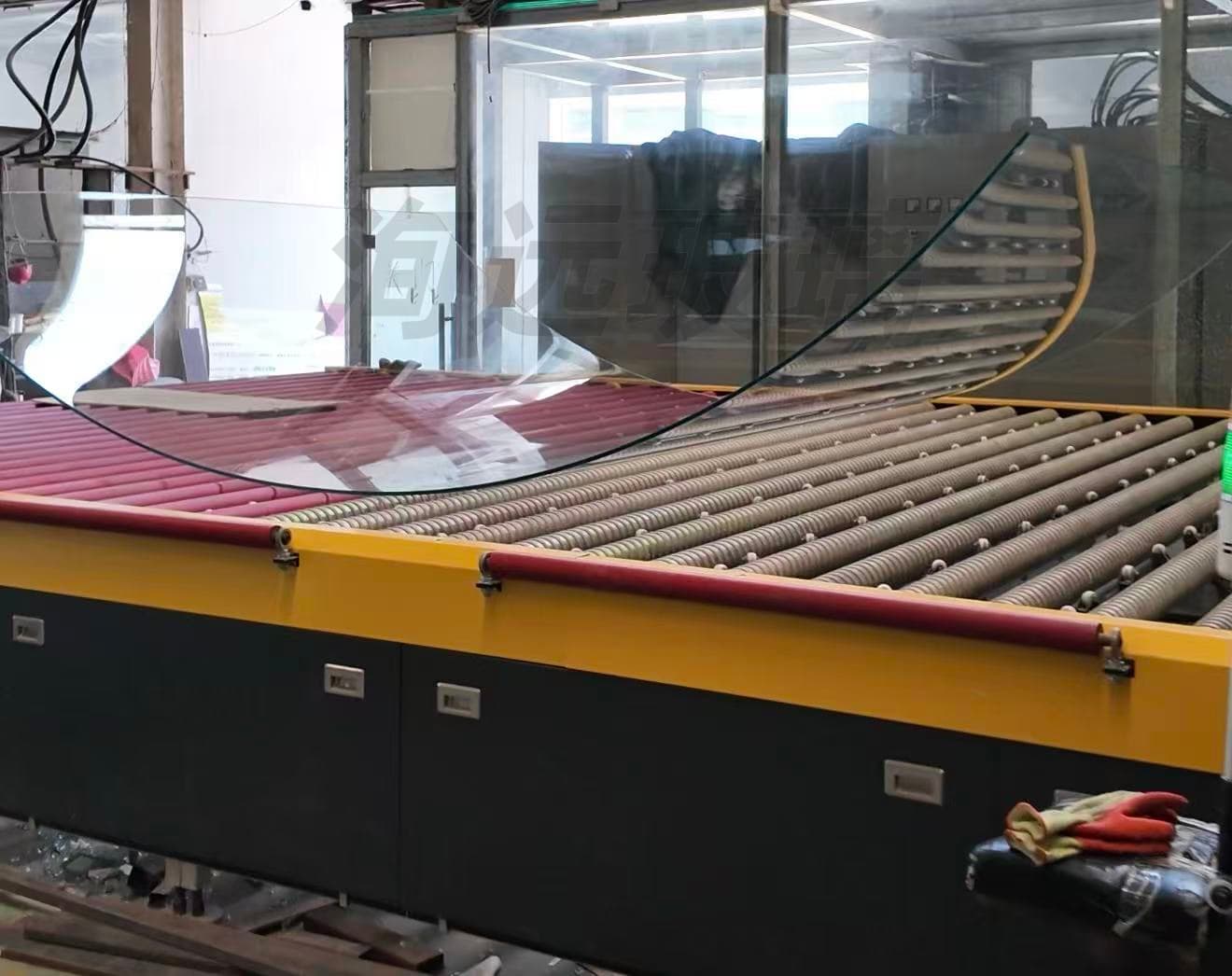

Duringtempering,parametersaresetzonebyzoneaccordingtothearcprofile.Theflattercrownsectionandthesectionswheretheprofilechangesquicklyreceivedifferentheatingandcoolingconditions,soresidualstressisevenedoutacrossthepanel.Flatnessandopticaldistortionarecontrolledwithintherangeoftheapplicablenationalstandard,andparametersaretunedperorderratherthantakenfromafixedtemplate.
ForSGPlaminatedunits,pressingparametersarere-calibratedbeforeeachproductionrun.Aformingcheckiscompletedbeforelamination.First-articleinspectiongatesthebatch,andin-processsamplingiscarriedoutthroughtherun.
Specificstructuralconfigurationisdeterminedbythepositionandheightofeachpanel.Windload,weatheringandstructuralloadvaluesareagreedintheorderandacceptancedocuments,supportedbyrawglasstechnicaldataandthird-partytestdocumentation.
4.Drawingsanddelivery
Weissuefabricationdrawingswithin24hoursafterreceivingCADfilesorsamples,atnocharge.Drawingsfollowtheactualpanelspecification.Wecanassistwithglassselection,structuralloadcalculationandjointdetailing.

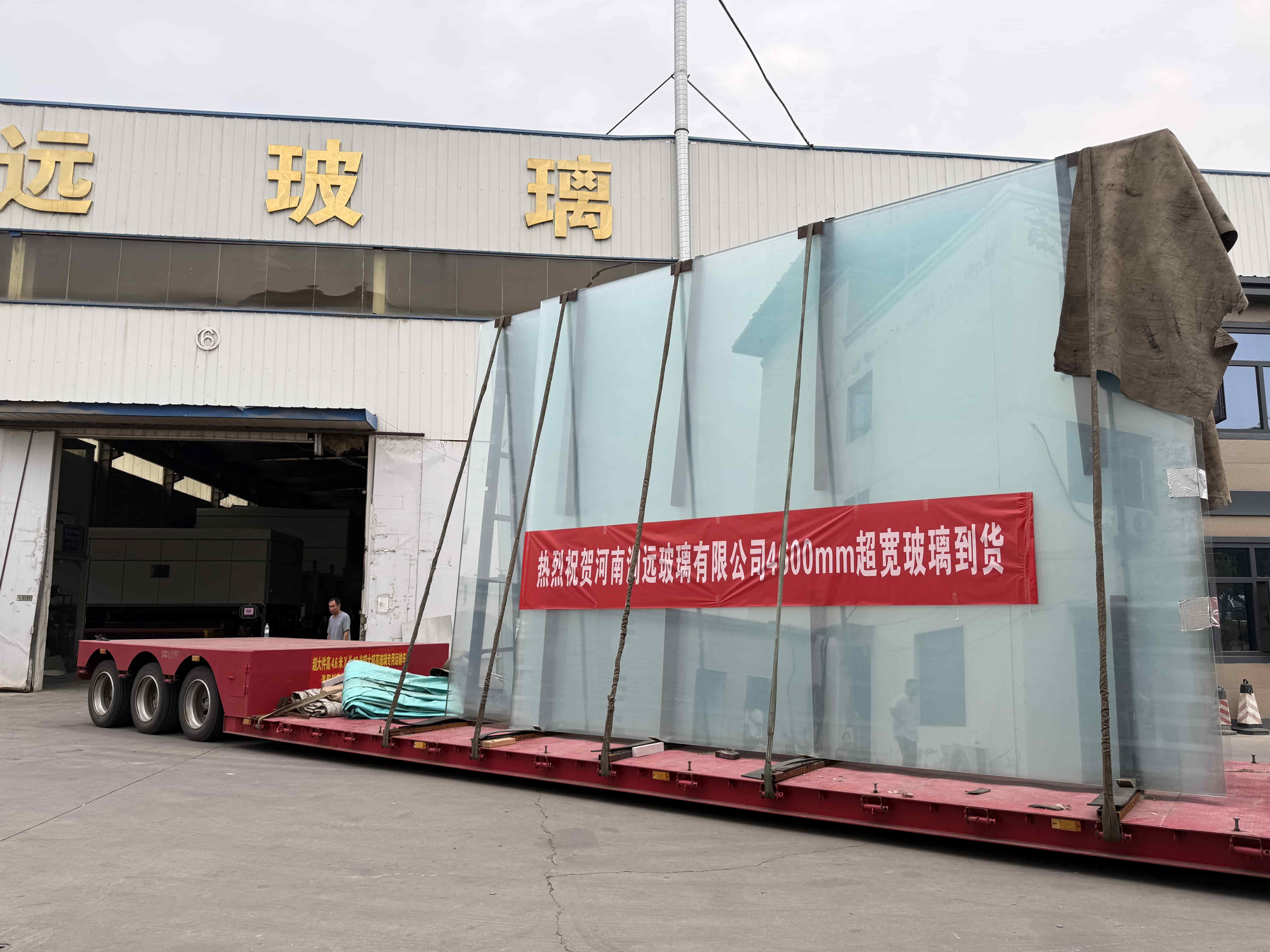

Ultra-widepanelsarepackedincustomtimbercrateswithsupportpointslocatedattheload-bearingareasofthearc,withthecurvedfacefacinginward.Loadingandunloadingguidanceisprovidedbeforeshipment.Standardleadtimeis7-10days,withexpeditedoptionsavailable.
5.Threechecksworthaskinganysupplier
Whethertheycanproduceseparatewhole-panelanddivided-panelcalculations,orwilltheydeclineonlyafterproductionstarts.
Whethershapedordeep-arcsectionsgetseparatemouldingandzone-wisestresscontrol.
Whetherfirst-articleinspectionandin-processsamplingarepartofthebatchplan.
