BentandShapedArchitecturalGlassforFacadeandInteriorProjects

HenanXunyuanGlassCo.,Ltd.(XunyuanGlass)produces,processesandshipscurvedtemperedglass,shapedarchitecturalglassandpatterneddotglassfromitsownproductionline,servingcurtainwallcontractors,interioranddisplaycontractors,designinstitutesandretailstorefrontteams.

Capabilityboundaries

Capabilityboundariesarethefirstthingtocheckwhenevaluatingacurvedglassprocessor.

• Normalbending:minimumradius300mm.

• Shapedbending:minimumradius350mm.

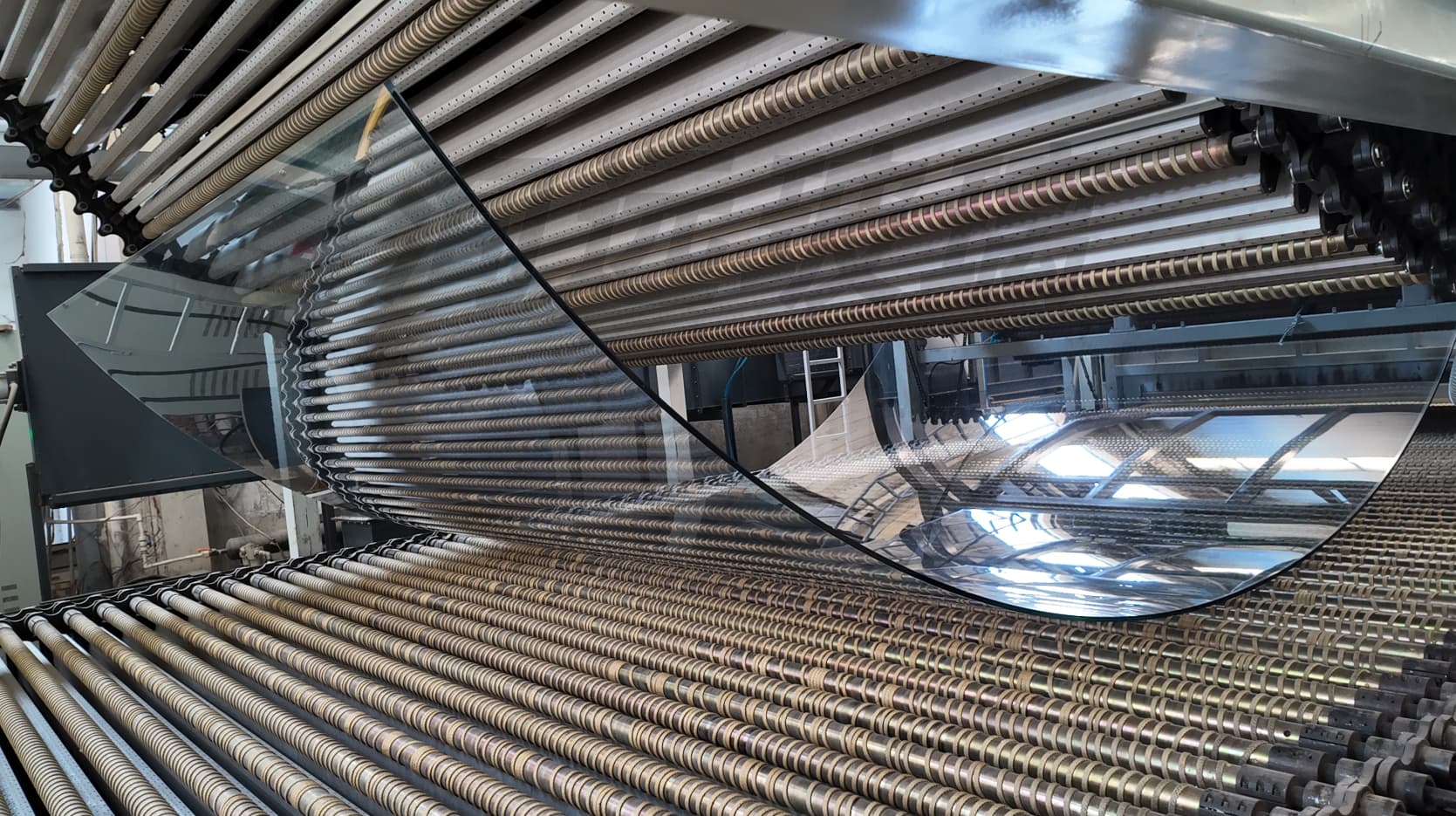

• Reachedalongthearcdirection,thelongestunitis8m.

• Thelargestpanelsizeis6m×8m.

• Thicknessrangecovers5–19mm.

Products

• Curvedtemperedglass—bentandtempered,forfacades,corners,atriaandlobbies

• Shapedarchitecturalglass—irregulararcsegmentsandshapedforming,processedtodrawings

• Patterneddotglass—dot-matrixpatternsmadetodesignfiles,combinedwithtemperingandlamination,mainlyforpartitionsanddecorativeelevations

• SGPlaminatedcurvedglass—interlayerconfiguredtotheprojectstructure

•


Specificationandprocess

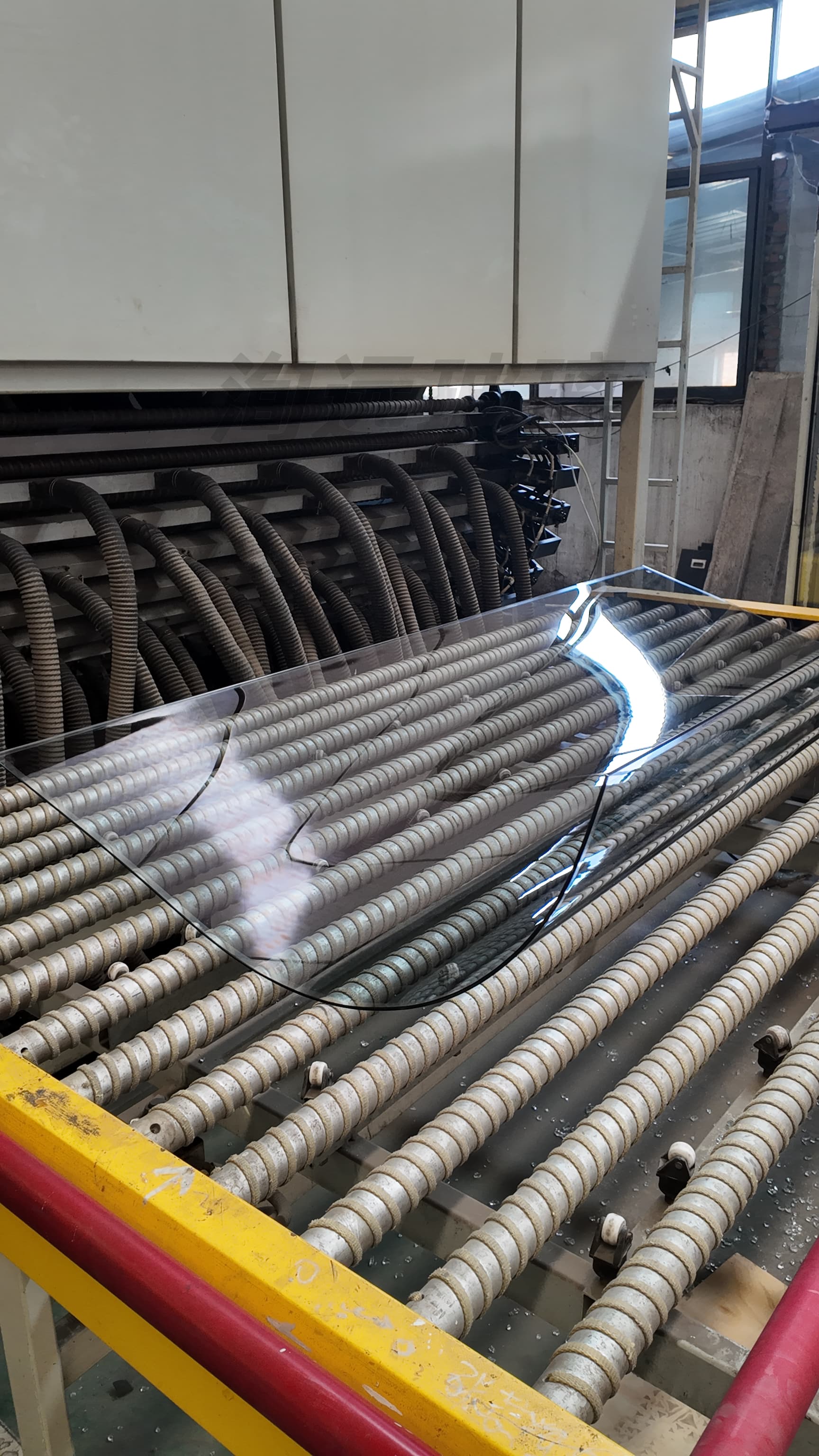

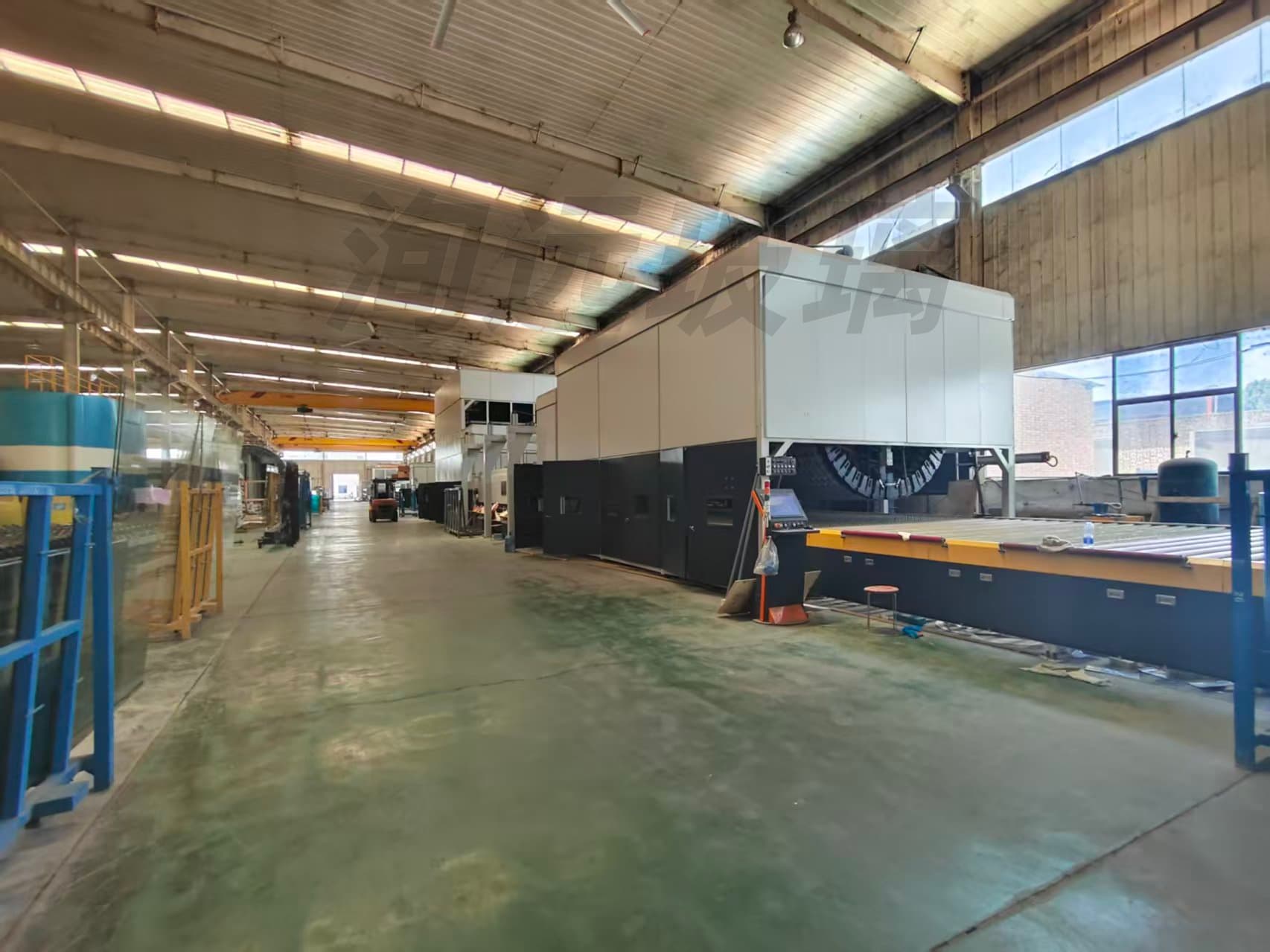

Theprocessrouterunsfromcutting,edgegrindinganddrillingthroughbending,tempering,laminationandshapedforming,completedononelinewithoutoutsourcingsteps.FlatnessandwavedistortionarecontrolledwithintherangessetbyChinesenationalstandards;nonumerictoleranceispromised,andfinalrequirementsareagreedintheorderanddrawings.

Applications

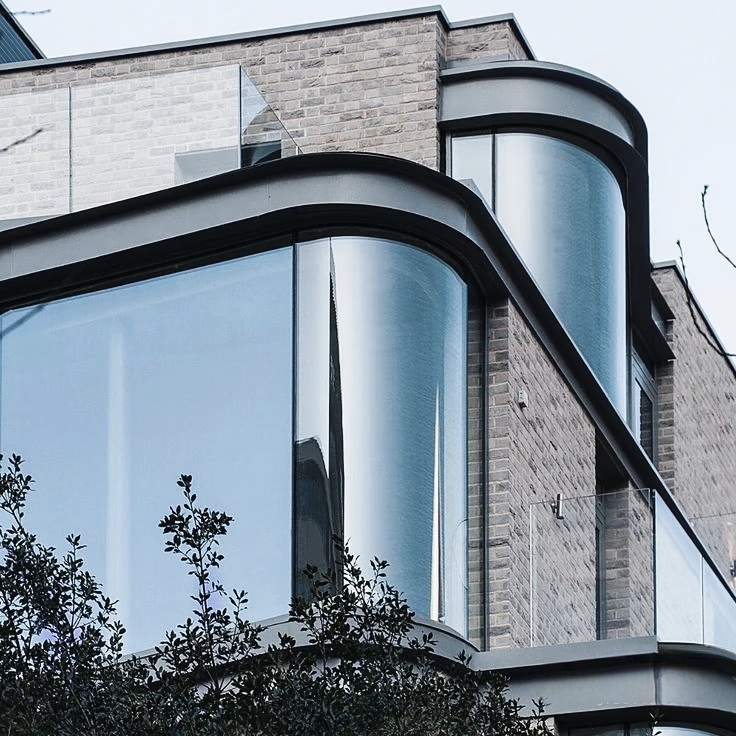

Curtainwallandmixed-usecomplexes·interiordecorationanddisplay·brandstorefrontsandautoshowrooms·transithubs,airportsandvenueinteriors·residentialandcustomprojects.

Processcontrol—fouractionsthatrunthrougheveryorder

1.Formingreview.Bendingandtemperingparametersarederivedfromthedrawings,andareaswithhighdeformationriskareflagged.Thishappensatthedeep-designstage.Whatyougain:problemssurfacebeforesteeliscut,notafterglassismade.

2.Per-orderparametersetting.Zonetemperatures,coolingpressure,laminationcurvesandformingtemperaturesarere-setfortheactualcurvatureofeachorder.Thishappensbeforeeachproductionrun.Whatyougain:theparametersmatchthepartsyouactuallyordered,notagenerictemplate.

3.First-piececheck.Oneunitisproducedandcheckedbeforethebatchisreleased.Thishappensbeforebatchproductionstarts.Whatyougain:batchriskisabsorbedbyasinglepieceinsteadofawholerun—andnoreworkpushingyourschedule.

4.In-processsampling.Parameterdriftismonitoredcontinuouslythroughtherunandcorrectedoncedetected.Thishappensthroughoutthebatch.Whatyougain:consistencyholdsfromthefirstunittothelast.

5.Oversizedpanelsandone-pieceforming.Largepanelsaccumulatemoreheat-induceddeformationduringprocessing,sothepanelsizeaprocessorcanhandleisboundedbythefurnaceworkingrange.Whenthatceilingisreached,theelevationhastobesplitintomorepieces—andmorepiecesmeansmoreseams,eachoneaddingtotheaccumulateddeviation.Thisisdecidedatthedesignandformingstages.Whatyougain:theelevationkeepsthecompletenessitwasdesignedfor,insteadofbeingcutuptofitafurnace.

6.Scheduleprotectionagainstrework.Leadtimesarenormallyquotedonastandardyieldassumption.Ifonebatchfails,theconsequenceisnotafewextrapieces—itmeansreschedulingproduction,re-runningthefurnaceandre-bookingtransport,withraw-glassleadtimeinbetween.Thatiswhereseconddelayscomefrom.Thefirst-piececheckandin-processsamplingdescribedabovearewhatkeepitfromhappening.Thisrunsfrombatchstartthroughtoshipment.Whatyougain:thedeliverydateyouwerequotedstaysrealistic.

Twocommonfailuremodestheseactionstarget:distortionandhazinessinthereflectionofcurvedsurfaces,causedbyunevencoolingratesacrossdifferingcurvatures;andlaminationdefects—bubbles,delaminationandedgehaziness—causedbypresscurvesthatdonotmatchtheactualcurvatureofthebatch.

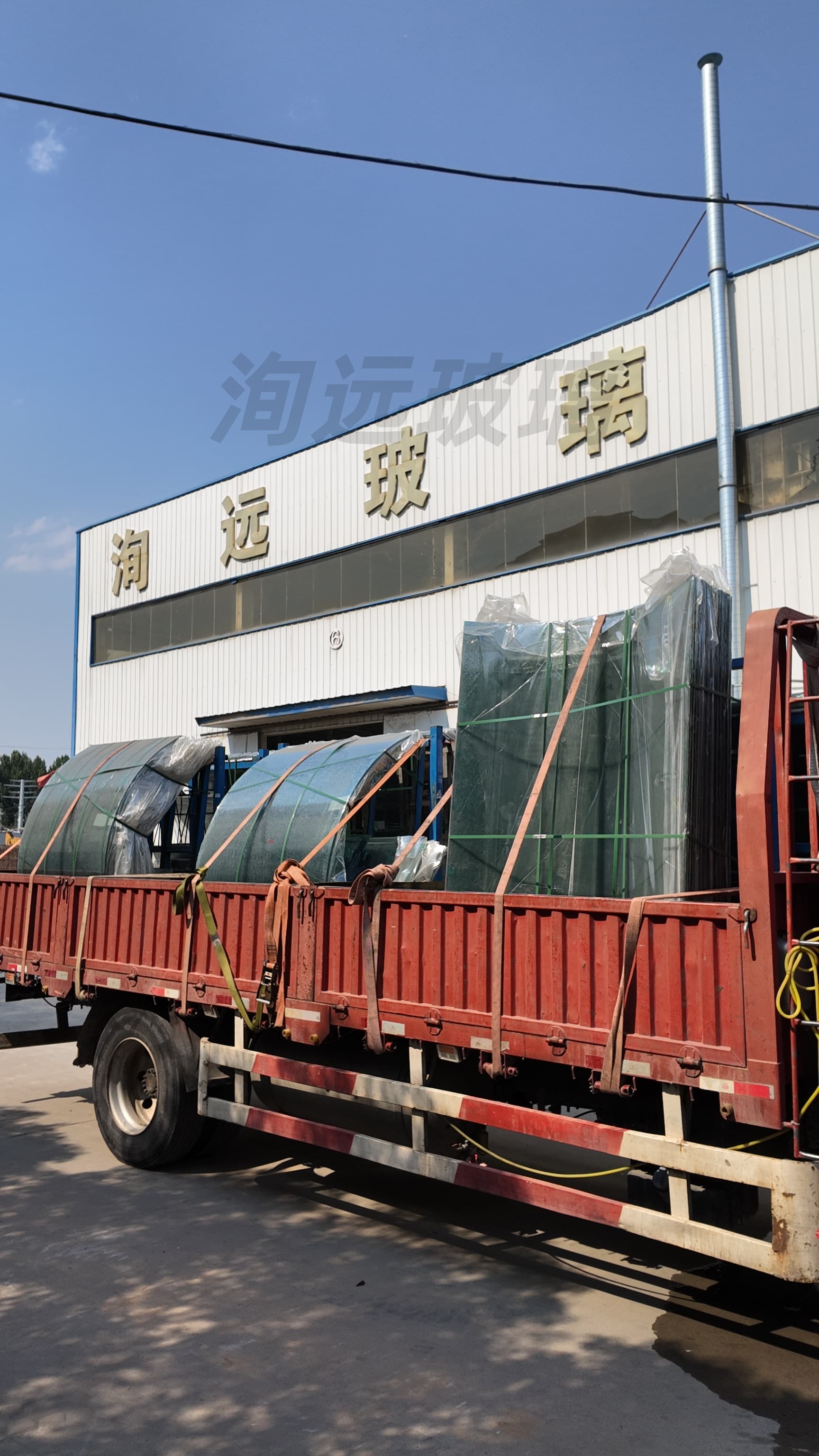

Foroversizedpanels,weadviseoncratingandliftingbeforeshipment.Ourrecommendationscovercrateload-bearingpoints,liftingpointlayoutandon-truckfixing.Thishappensatthepackingstage,sodamageintransitisavoidedratherthanarguedaboutafterwards.

Deliveryandservice

Freedeep-processingdrawingswithin24hoursofreceivingCADfilesorsamples·assistancewithglassselection,structuralloadcalculationandjointdetailing·packingrecommendationsandliftingguidanceshippedwiththegoods·after-salesfollow-upperorderterms.

Workflow:sampleconfirmation→deep-processingdrawings→productionscheduling→factorycheck→packingandshipment→after-salesfollow-up.

Threepointsyoucanverify

2. Canthesupplierstateitsminimumradiuswithouthedging?Canitstateitsarc-lengthboundariesjustasclearly?

3. Canitshowrecordsoffirst-piececheckandin-processsampling?

4. Isthequotationitemised—area-basedpricingplusaprocessing-difficultycoefficient—ratherthanonelumpfigure?
